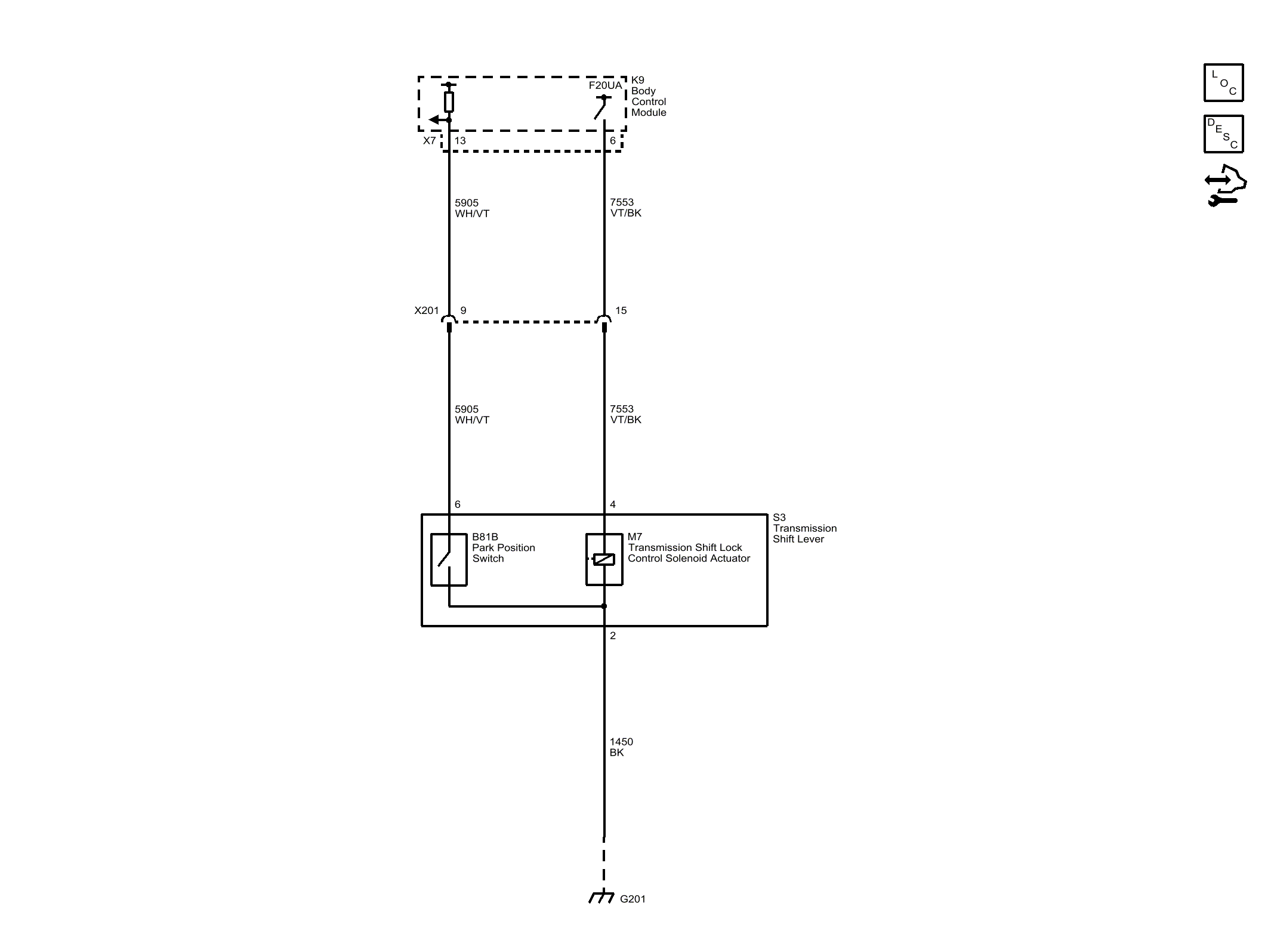

Home › Chevrolet › 2015 › Corvette Z06, 2D Convertible, Automatic Trans › Repair and Diagnosis › Transmission › Automatic Trans › Shift Lock Control System › Schematic Wiring Diagrams › Shift Lock Control Wiring Schematics › Shift Lock (M5U)
