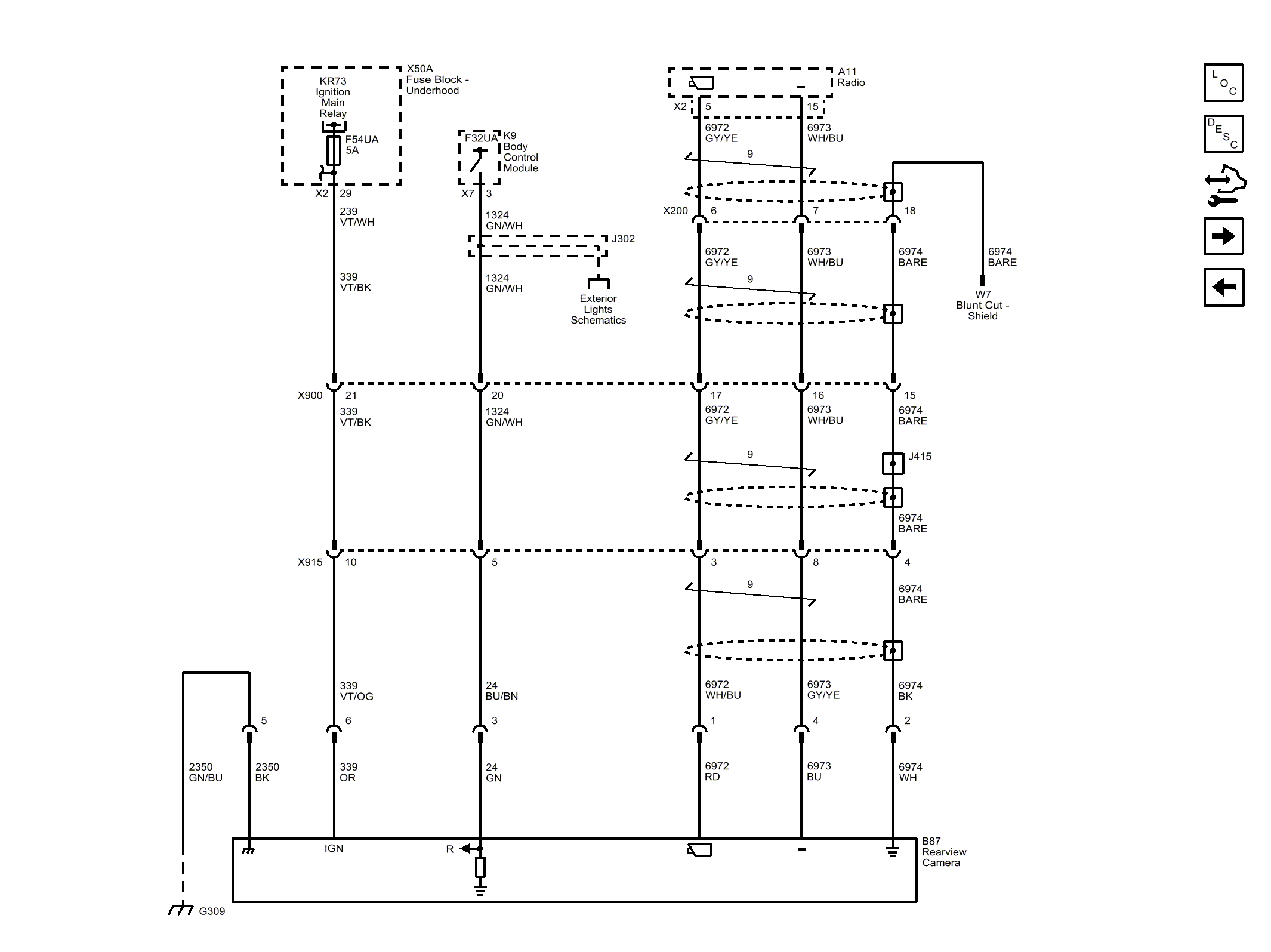

Home › Chevrolet › 2015 › Cruze Diesel › Repair and Diagnosis › Accessories & Equipment › Collision/Avoidance › Object Detection System And Pedestrian Protection System › Schematic Wiring Diagrams › Object Detection Wiring Schematics › Rear View Camera (UVC)
