Keyless and Passive Entry (ATH)

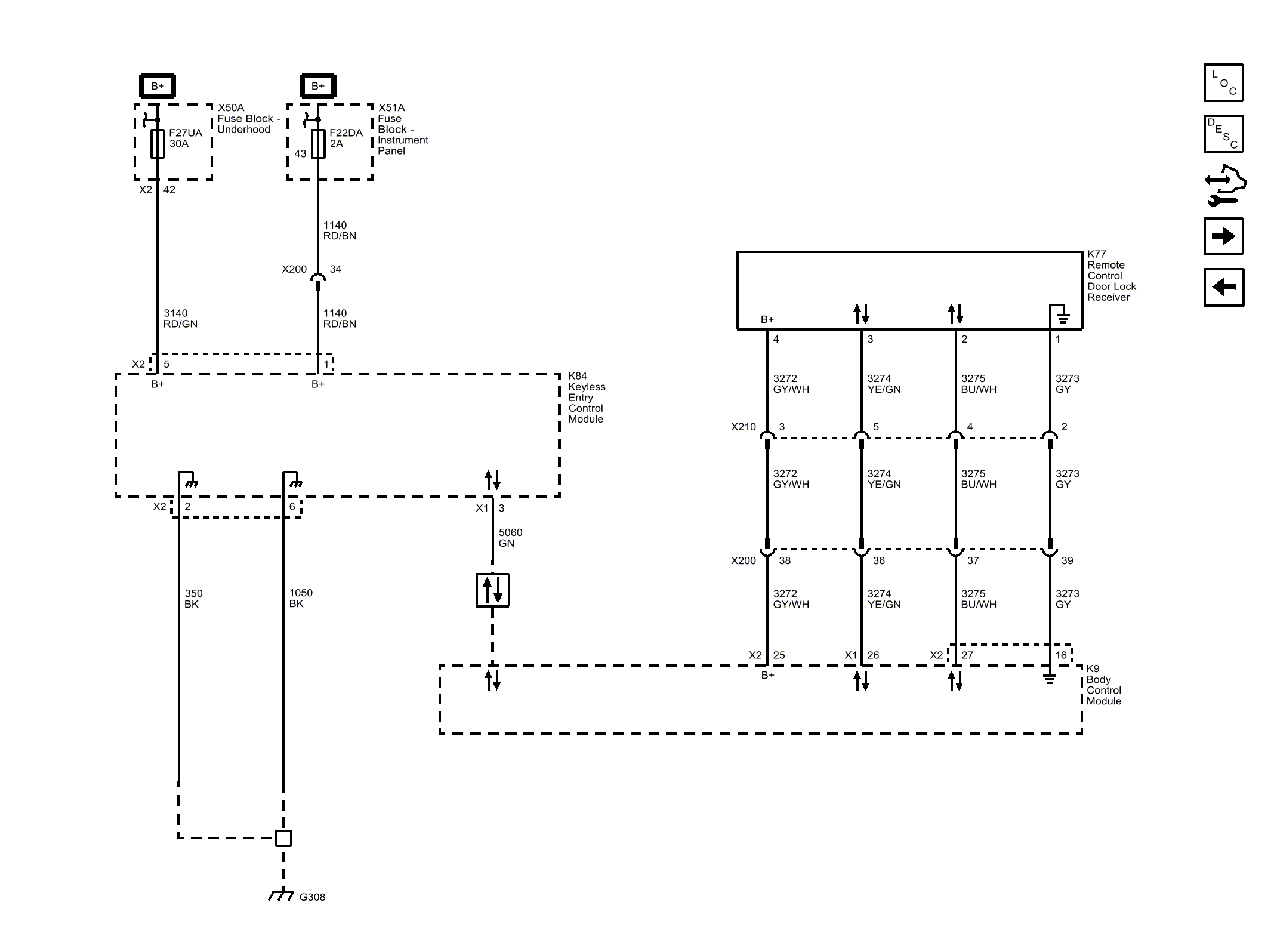

Fig 1: Keyless and Passive Entry (ATH)
GM3814578Courtesy of GENERAL MOTORS COMPANY
