Linear Interconnect Network (LIN) Serial Data

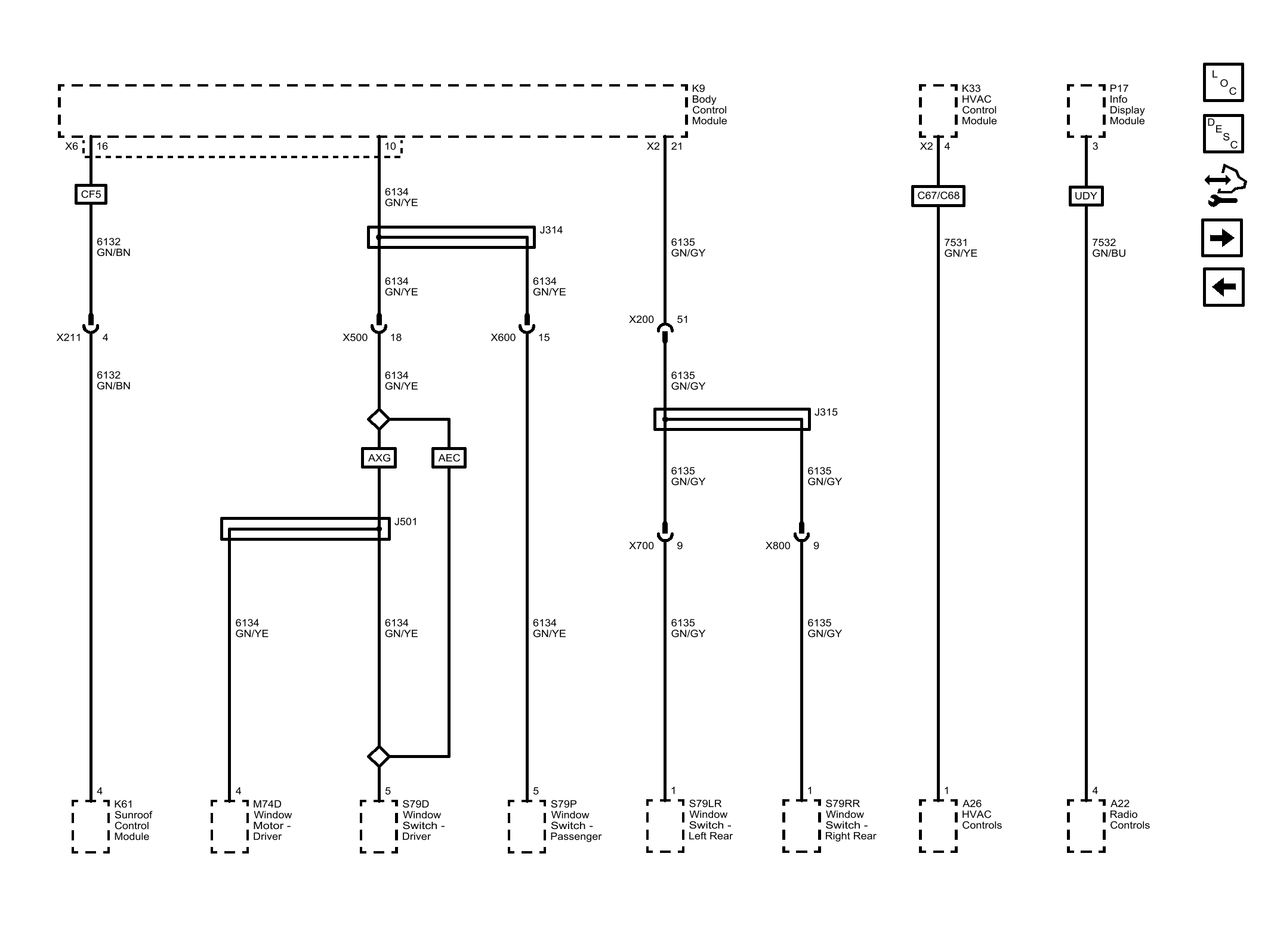

Fig 1: Linear Interconnect Network (LIN) Serial Data
GM3814484Courtesy of GENERAL MOTORS COMPANY
