Data Communication Wiring Schematics
›
Powertrain Expansion Bus (LUZ)
Powertrain Expansion Bus (LUZ)

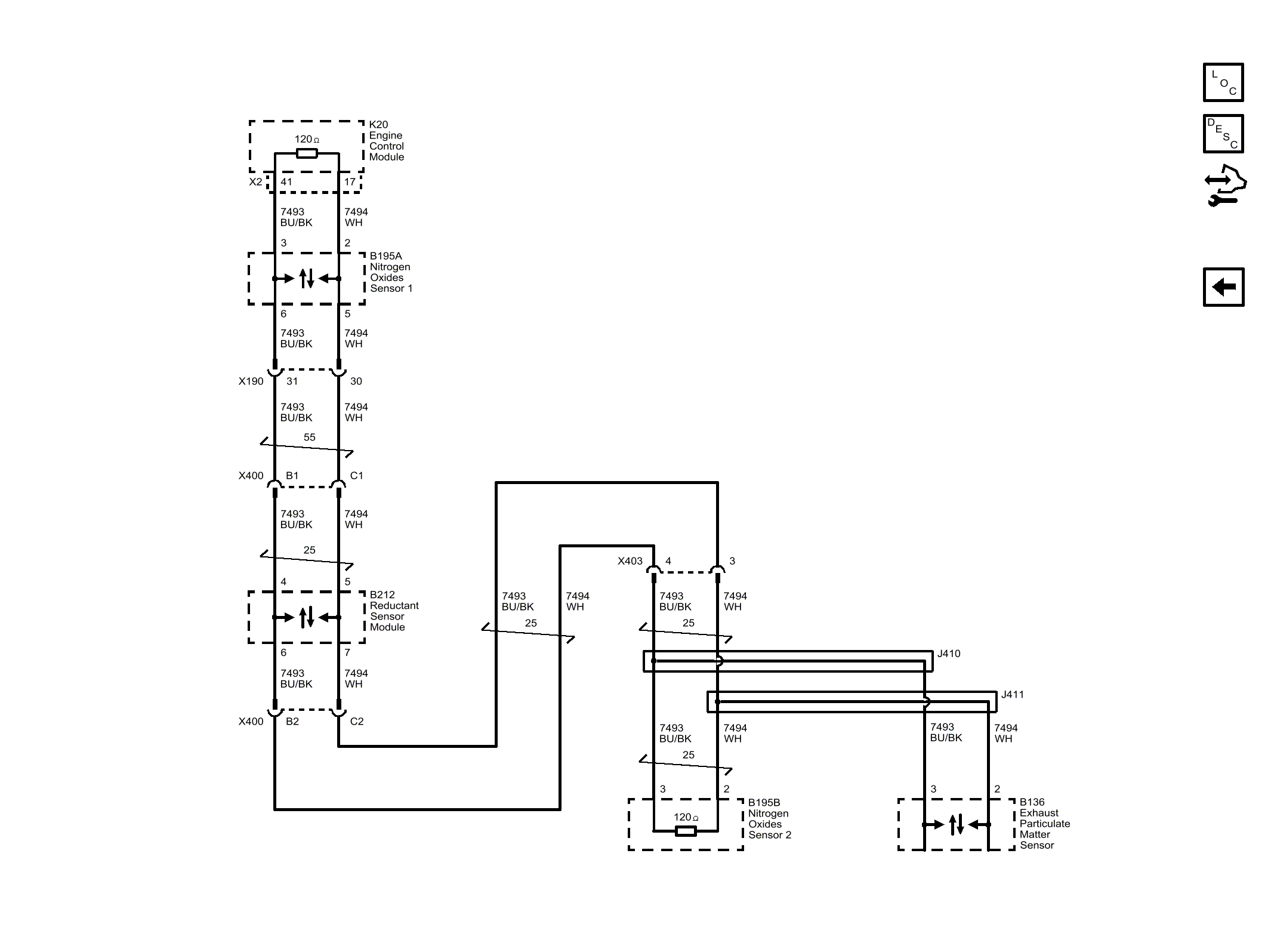

Fig 1: Powertrain Expansion Bus (LUZ)
Courtesy of GENERAL MOTORS COMPANY
