Removal Procedure

  1. Remove the rear compartment side trim - right side. Refer to Rear Compartment Side Trim Replacement - Right Side .
  2. Remove the chassis control module wiring harness plug (2) from the chassis control module (1).
    Fig 1: Fuel Pump Flow Control Module
    GM2373079Courtesy of GENERAL MOTORS COMPANY
  3. Remove the chassis control module nut (4).

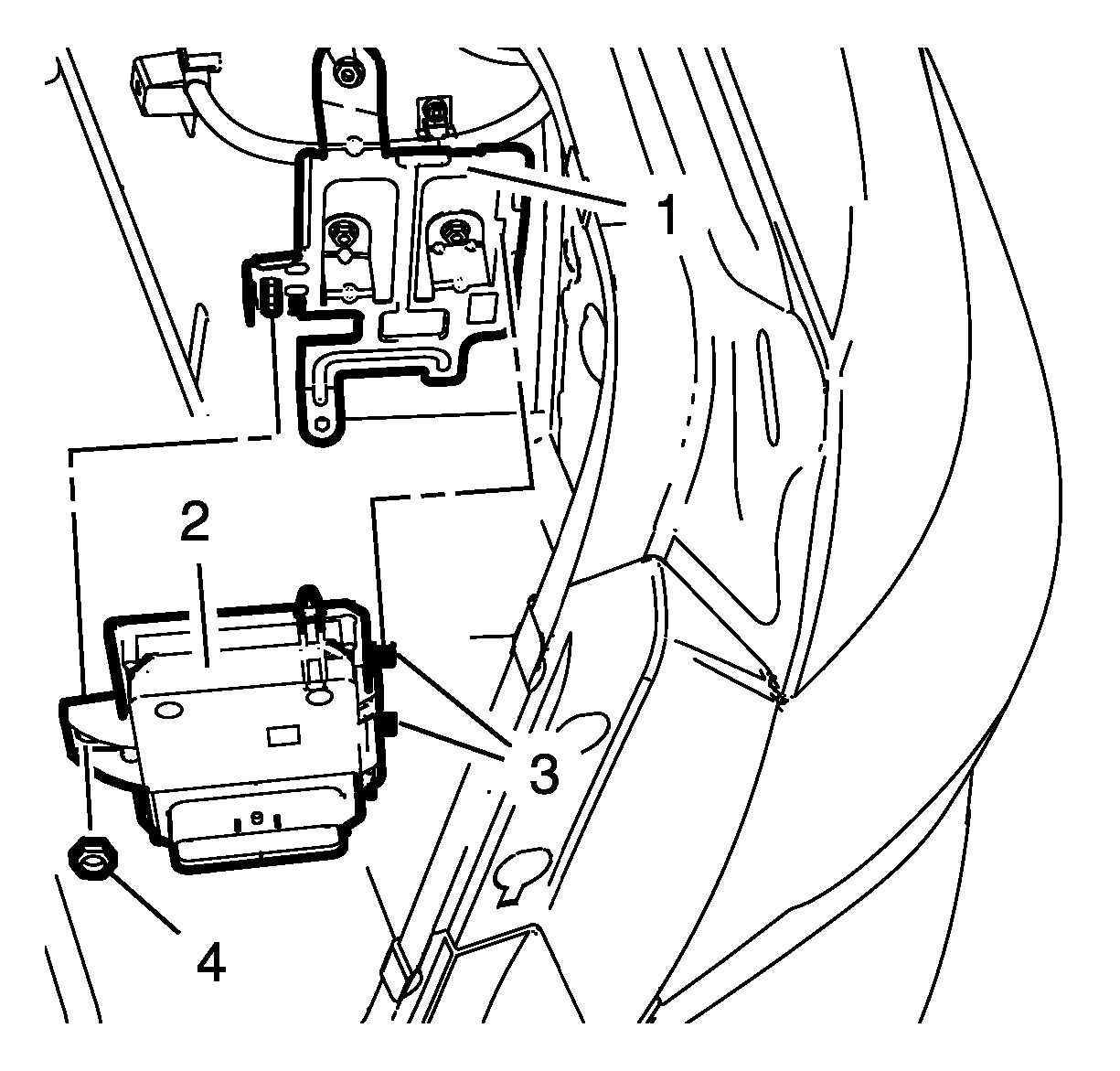

    Fig 2: Chassis Control Module Nut
    GM3398197Courtesy of GENERAL MOTORS COMPANY
  4. Unclip the 2 chassis control module clips (4) from the chassis control module bracket (2).
  5. Remove the chassis control module (2).
