Body Control Module Bracket Replacement

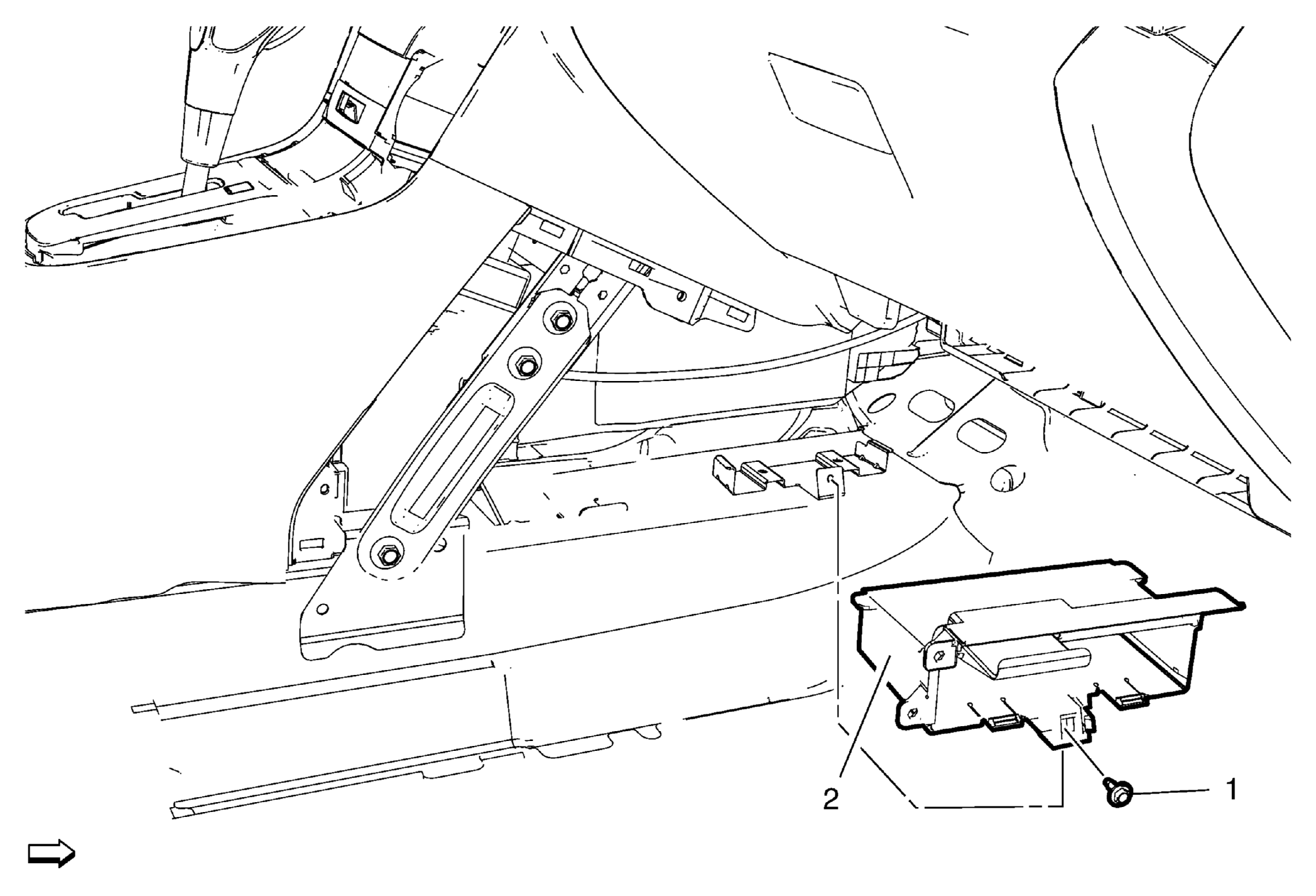

Fig 1: Body Control Module Bracket

GM2372600

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
Remove instrument panel lower trim panel - right side. Refer to Instrument Panel Lower Trim Panel Replacement - Right Side .
Remove the body control module.

1

Body Control Module Bracket Bolt

CAUTION: Refer to Fastener Caution .

2

Body Control Module Bracket
