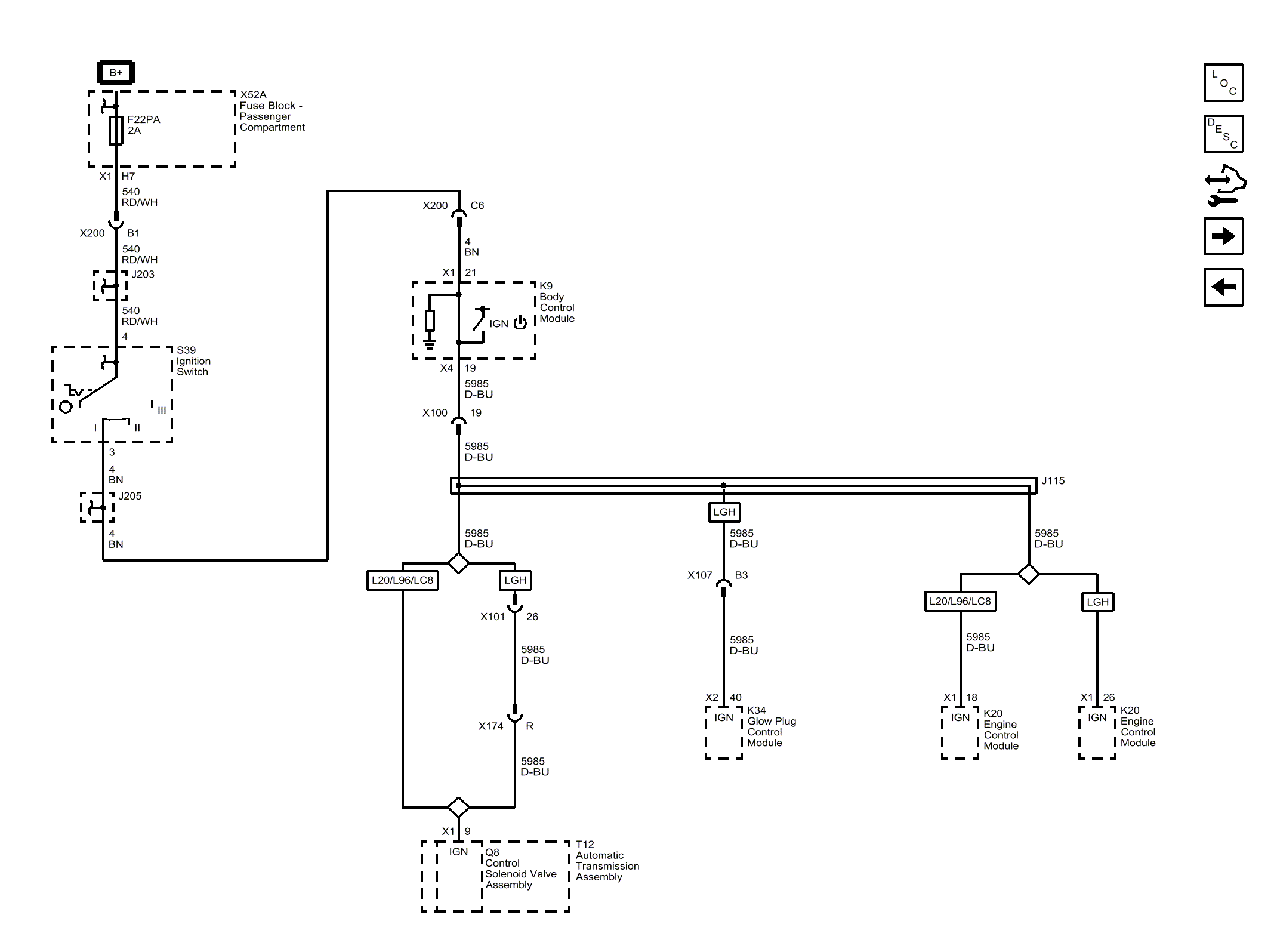

Home › Chevrolet › 2015 › Express 2500 LS, 6.0L Eng VIN G › Repair and Diagnosis › Engine Performance › System › Data Communication System › Schematic Wiring Diagrams › Data Communication Wiring Schematics › Accessory Wakeup
