Rear Side Door Inside Handle Cable Replacement

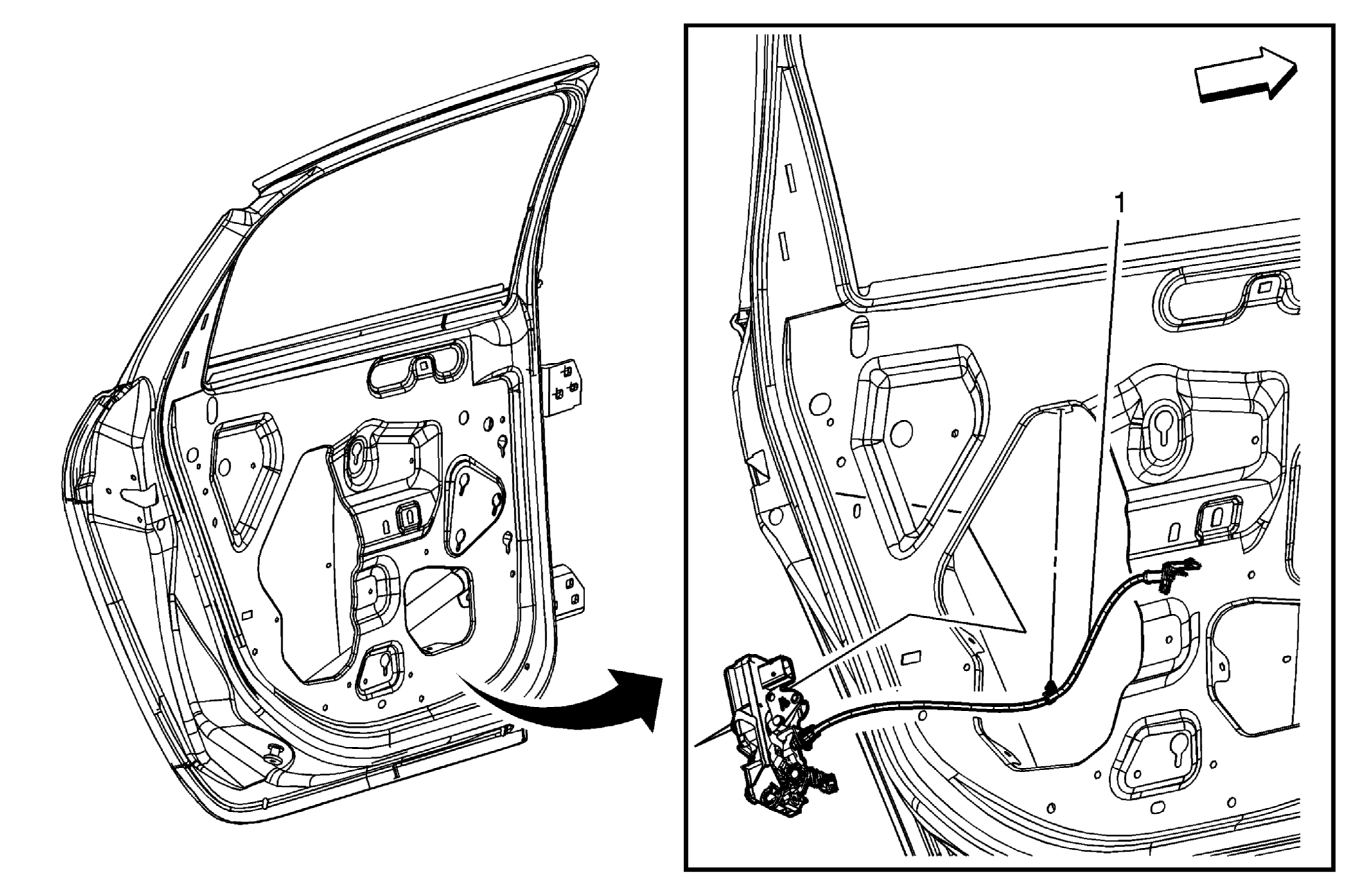

Fig 1: Rear Side Door Inside Handle Cable

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the interior trim panel. Refer to Rear Side Door Trim Panel Replacement . Remove the water deflector. Refer to Rear Side Door Water Deflector Replacement . Remove the rear side door lock. Refer to Rear Side Door Lock Replacement .
1	Rear Door Lock Cable NOTE: Use a flat-bladed screwdriver to release the inside door handle from the trim panel.

Callout

Component Name

Preliminary Procedures

Remove the interior trim panel. Refer to Rear Side Door Trim Panel Replacement .
Remove the water deflector. Refer to Rear Side Door Water Deflector Replacement .
Remove the rear side door lock. Refer to Rear Side Door Lock Replacement .

Rear Door Lock Cable

NOTE:

Use a flat-bladed screwdriver to release the inside door handle from the trim panel.
