Windshield Washer Solvent Container Level Sensor Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

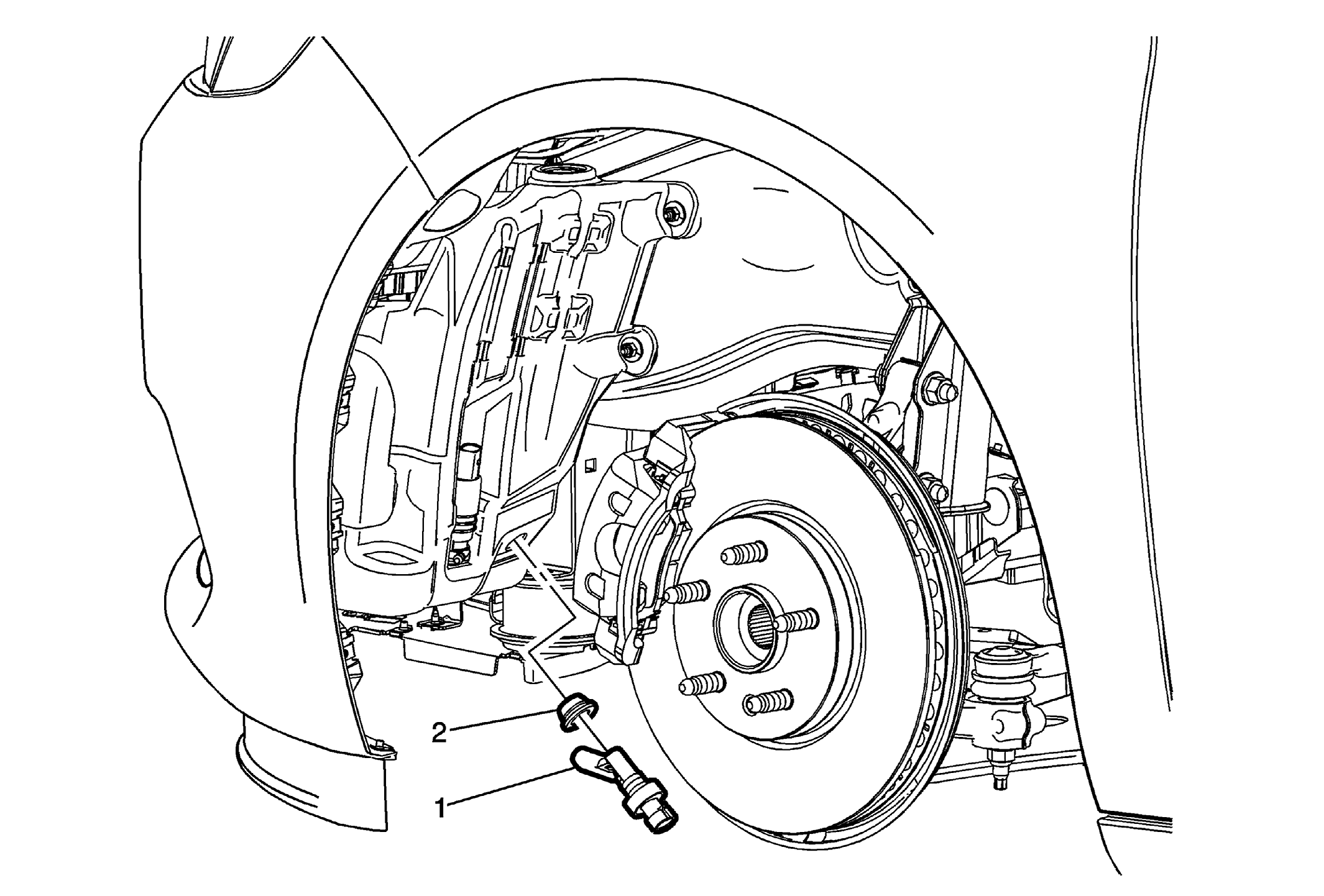

Fig 1: Windshield Washer Solvent Level Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Reposition the left front wheelhouse liner. Only do those steps in the front wheelhouse liner replacement procedure that will remove the wheelhouse liner enough to gain access to the part. Refer to Front Wheelhouse Liner Replacement .
1	Windshield Washer Solvent Level Sensor Procedure Place a clean suitable drain pan under the windshield washer solvent container to recover the windshield washer solvent when the windshield washer solvent level sensor is removed. Disconnect the electrical connector. Place two flat bladed tools under each side of the windshield washer solvent level sensor seal. Twist the two flat bladed tools in opposite directions to lift and disengage the windshield washer solvent level sensor from the windshield washer solvent container.
2	Windshield Washer Solvent Level Sensor Seal NOTE: Install a new windshield washer solvent level sensor seal upon replacement of the windshield washer solvent level sensor.

Callout

Component Name

Preliminary Procedure
Reposition the left front wheelhouse liner. Only do those steps in the front wheelhouse liner replacement procedure that will remove the wheelhouse liner enough to gain access to the part. Refer to Front Wheelhouse Liner Replacement .

Windshield Washer Solvent Level Sensor

Procedure

Place a clean suitable drain pan under the windshield washer solvent container to recover the windshield washer solvent when the windshield washer solvent level sensor is removed.
Disconnect the electrical connector.
Place two flat bladed tools under each side of the windshield washer solvent level sensor seal.
Twist the two flat bladed tools in opposite directions to lift and disengage the windshield washer solvent level sensor from the windshield washer solvent container.

Windshield Washer Solvent Level Sensor Seal

NOTE: Install a new windshield washer solvent level sensor seal upon replacement of the windshield washer solvent level sensor.
