Mobile Telephone Microphone Replacement
WARNING: This page is about a different car, the 2015 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the roof console. Refer to Roof Console Replacement . |
|

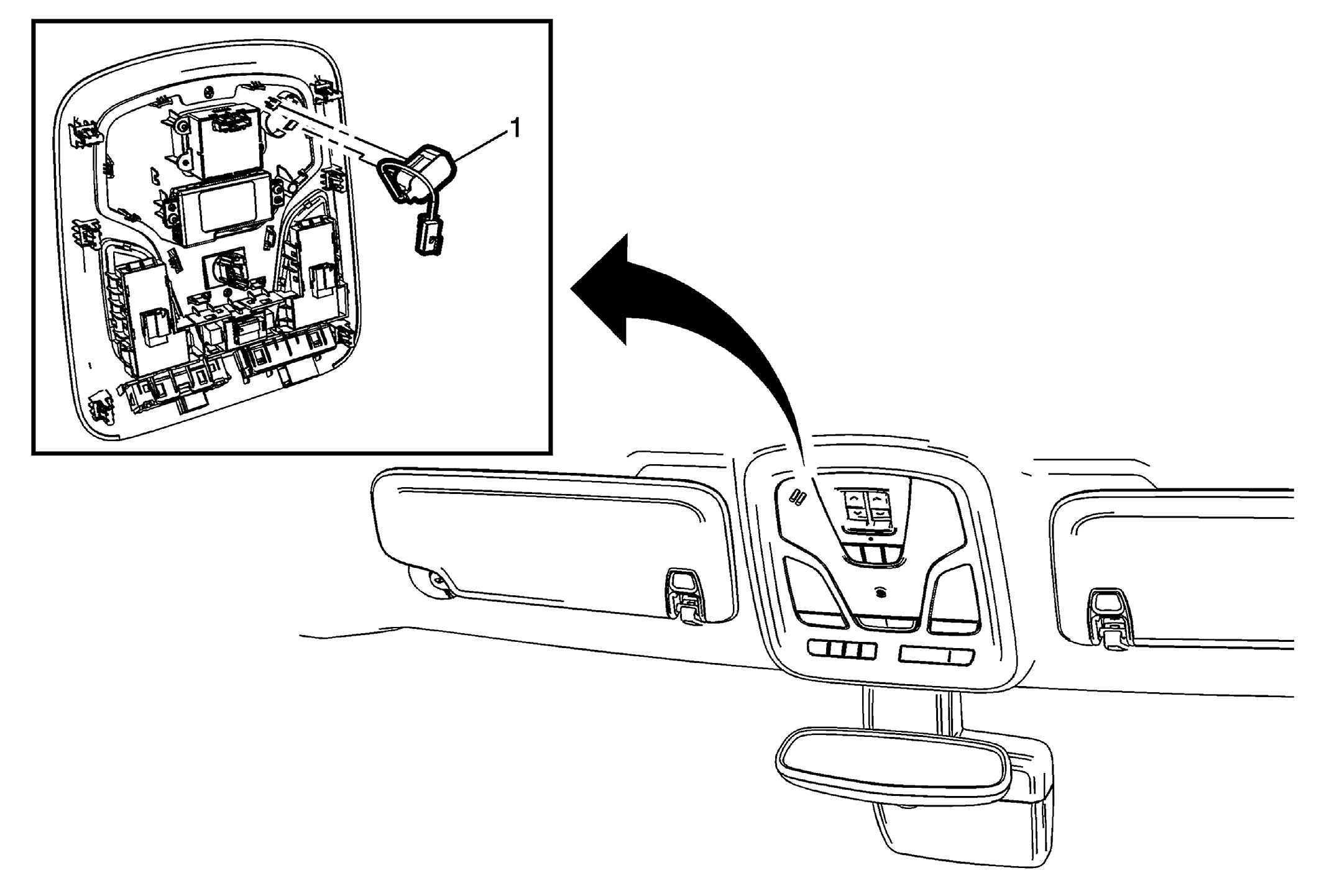

| 1 | Mobile Telephone Microphone Procedure Depress tabs to release the microphone from the trim plate. |
