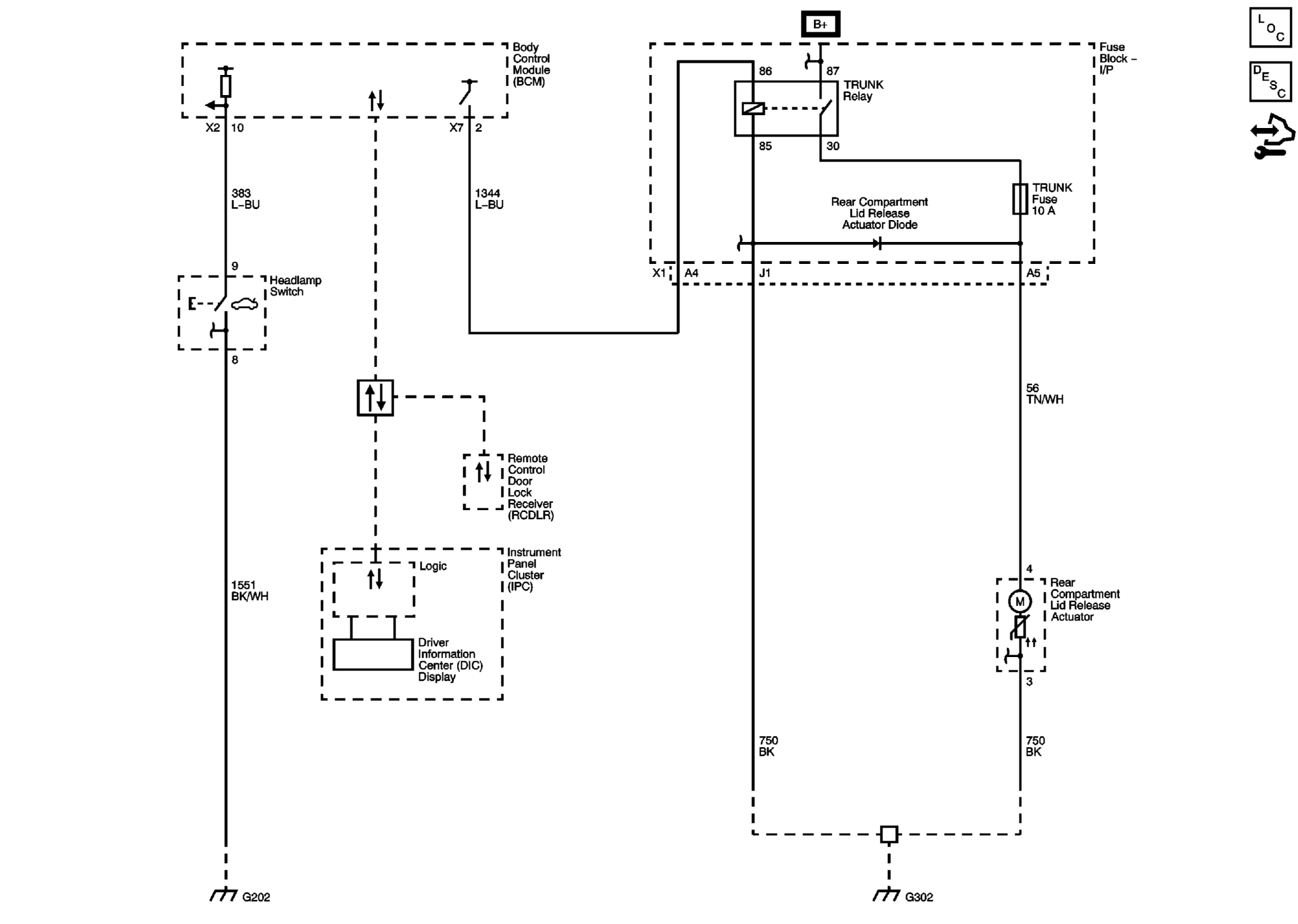

Home › Chevrolet › 2015 › Impala Limited LTZ › Repair and Diagnosis › Body & Frame › Door Locks › Keyless Entry System And Remote Functions › Schematic Wiring Diagrams › Release Systems Wiring Schematics › Release Systems
