Steering Angle Sensor Replacement

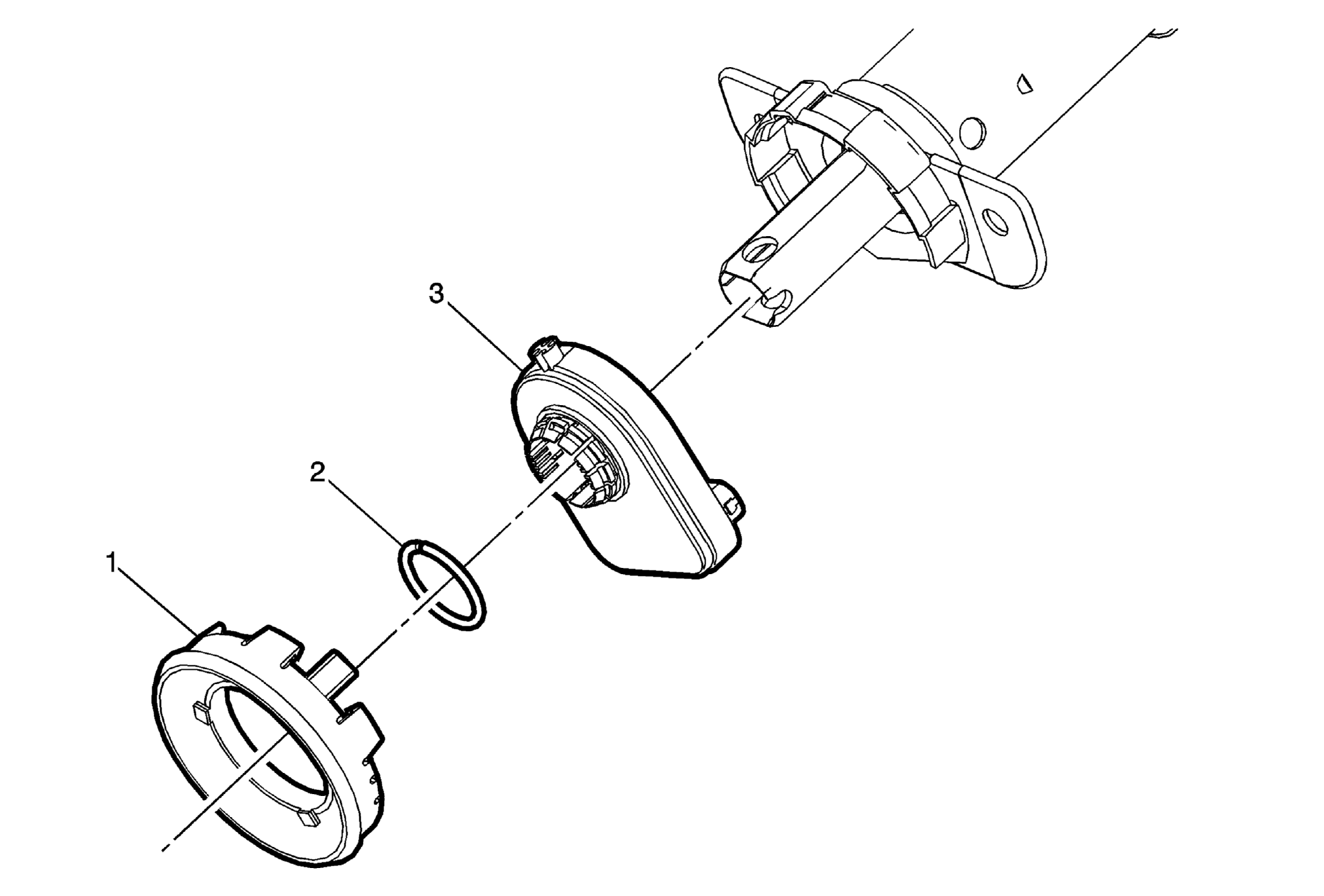

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the steering column. Refer to Steering Column Replacement . |
|
| 1 | Steering Angle Sensor Retainer |
| 2 | Steering Angle Sensor Retaining Ring
CAUTION:
Refer to Fastener Caution . Procedure Remove and discard the old retaining ring. Do NOT reuse the retaining ring, replace with NEW only. |
| 3 | Steering Angle Sensor Procedure After the installation is complete, center the steering angle sensor. Refer to Steering Angle Sensor Centering . |
