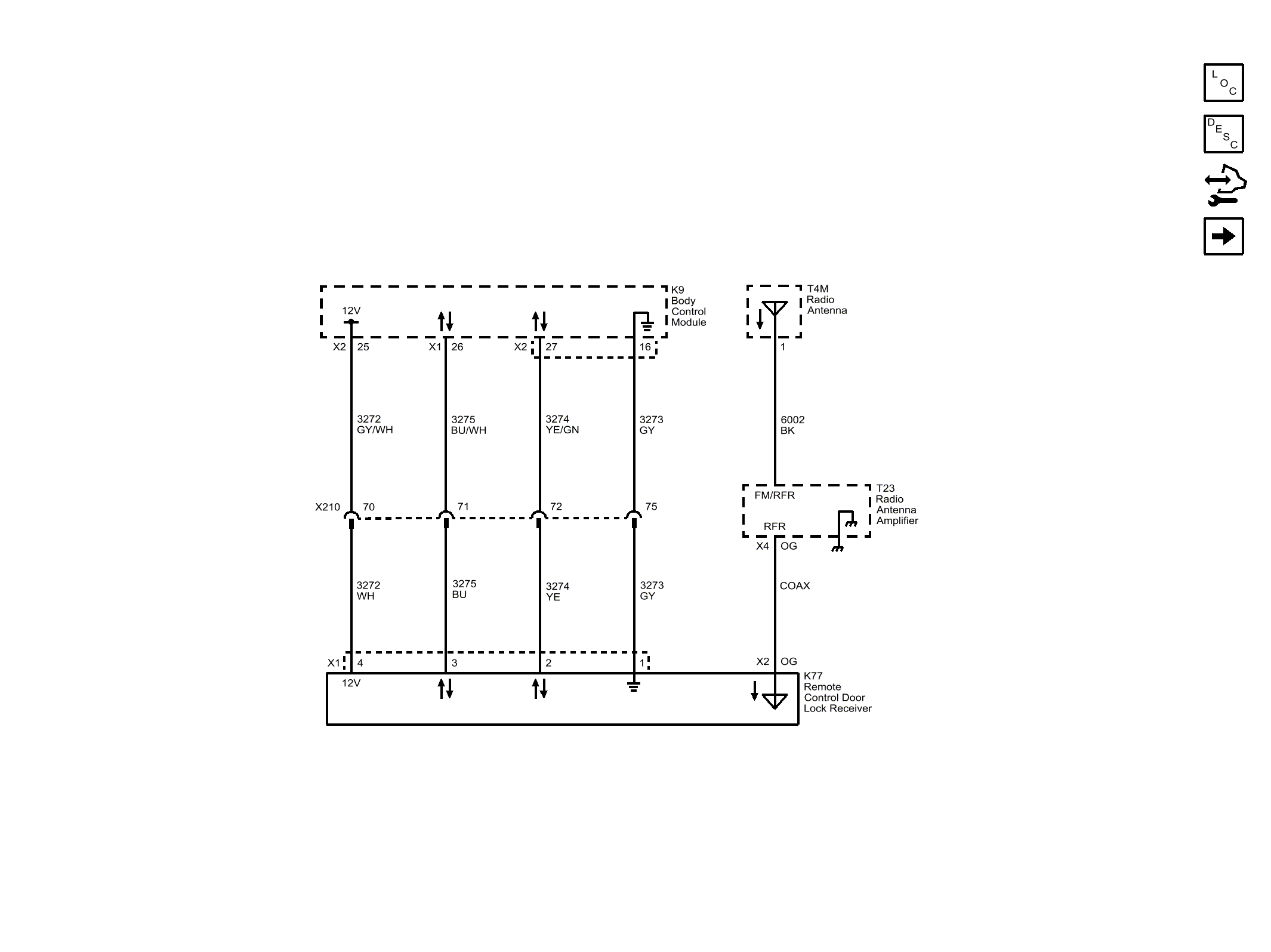

Home › Chevrolet › 2015 › Malibu LS › Repair and Diagnosis › Body & Frame › Door Locks › Keyless Entry System And Remote Functions › Schematic and Wiring Diagrams › Remote Function Wiring Schematics › Keyless Entry
