Body Control Module Bracket Replacement

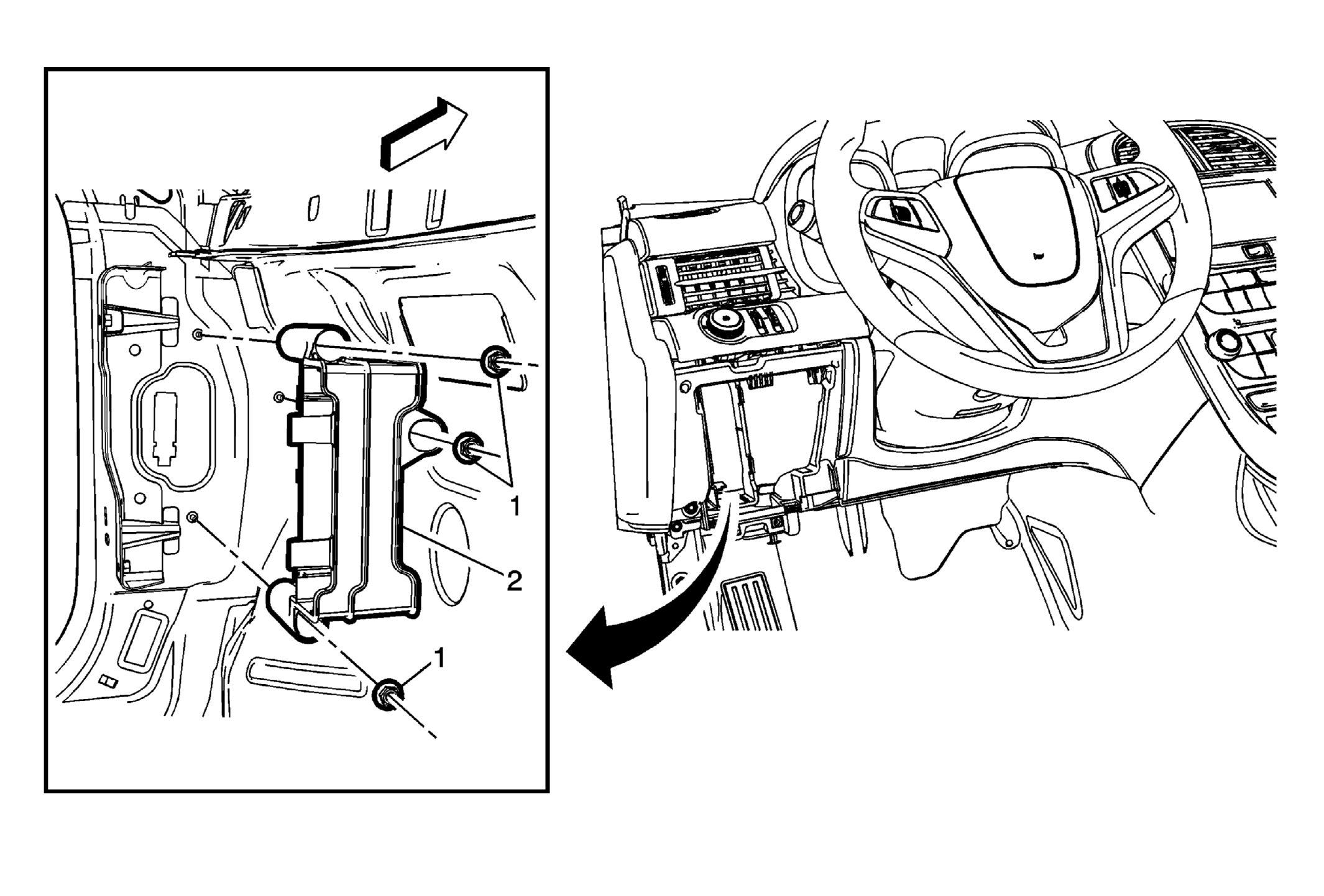

Fig 1: Body Control Module Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the body control module. Refer to Body Control Module Replacement .
1	Body Control Module Bracket Fastener (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Body Control Module Bracket
