Power, Ground and Data Communications

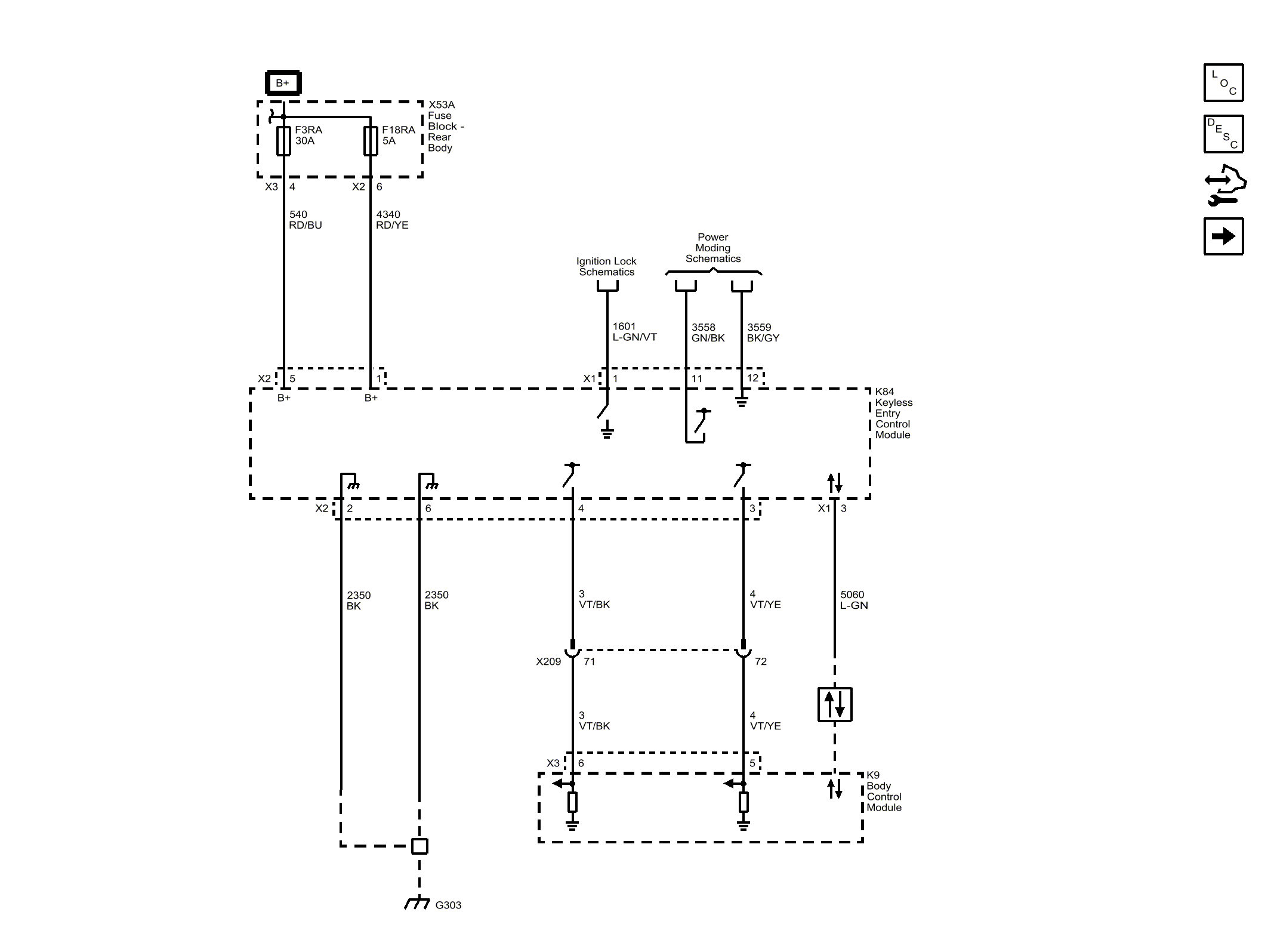

Fig 1: Power, Ground and Data Communications
GM3922982Courtesy of GENERAL MOTORS COMPANY
