Sunroof Switch Replacement

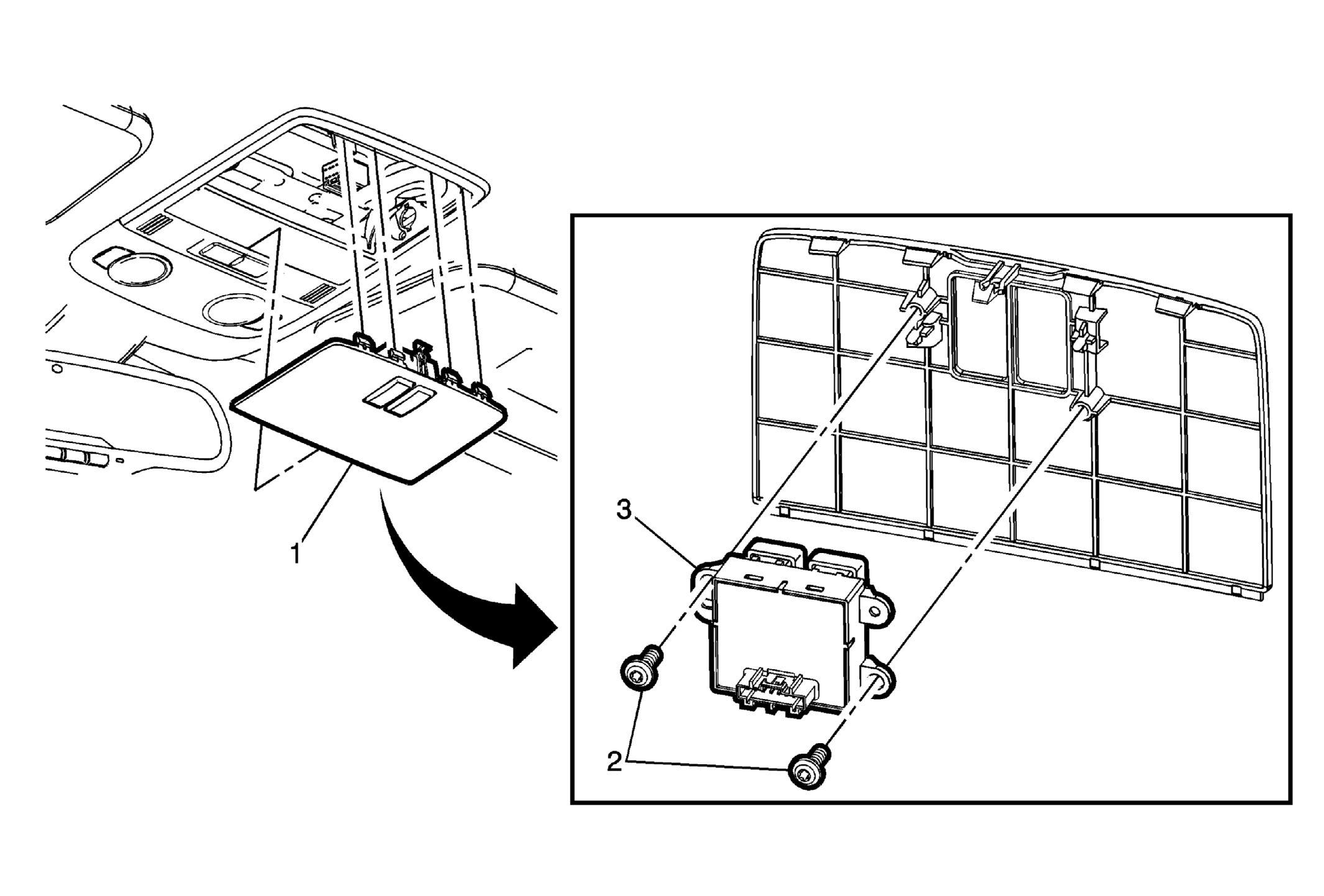

Fig 1: Sunroof Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Sunroof Actuator Trim Cover Procedure Use a flat bladed plastic trim tool in order to release the cover. Disconnect the electrical connector.
2	Sunroof Switch Fasteners (Qty: 2) CAUTION: Refer to Fastener Caution .
3	Sunroof Switch

Callout

Component Name

Sunroof Actuator Trim Cover

Procedure

Sunroof Switch Fasteners (Qty: 2)

CAUTION:

Sunroof Switch
