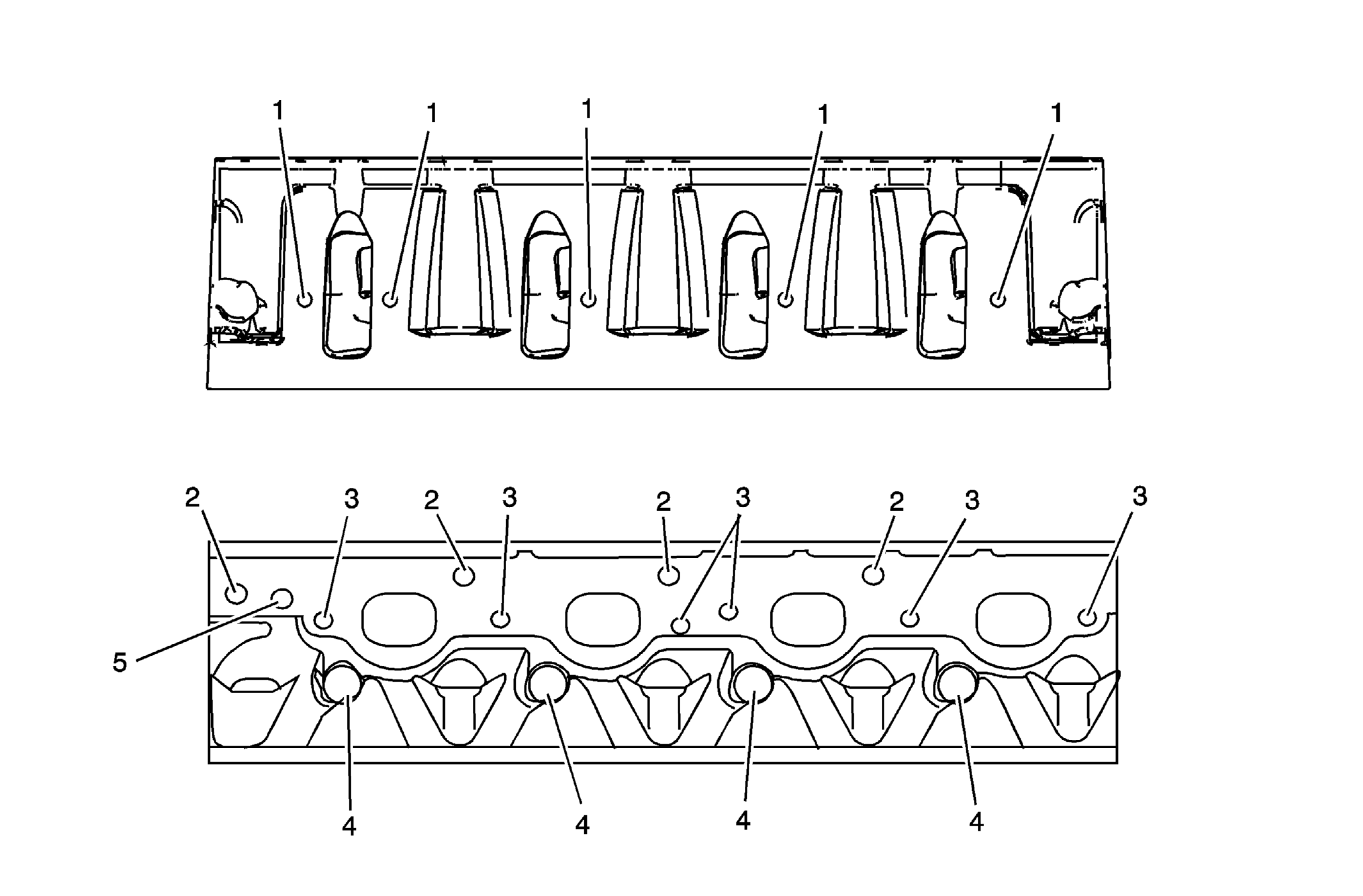

Cylinder Head- Intake/Exhaust Side Views
Cylinder Head- Intake/Exhaust Side Views
| Hole | Thread Size | Insert | Drill | Counter Bore Tool | Tap | Driver | Drill Depth- Maximum mm (in) | Tap Depth- Maximum mm (in) |
|---|---|---|---|---|---|---|---|---|
| J 42385- | ||||||||
| 1 | M6 x 1.0 | 205 | 201 | 202 | 203 | 204 | Thru | Thru |
| 2 | M10 x 1.5 | 215 | 211 | 212 | 213 | 214 | 28.0 (1.10) | 20.0 (0.787) |
| 3 | M8 x 1.25 | 210 | 206 | 207 | 208 | 209 | 21.0 (0.826) | 16.0 (0.629) |
| 4 | M14 x 1.25 | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| 5 | M12 x 1.5 | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
