SS Automatic Trans
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Data Communication System
›
Schematic Wiring Diagrams
›
Body Control System Wiring Schematics
›
Module Power, Ground, Serial Data, and Subsystem References (1 of 4)
Module Power, Ground, Serial Data, and Subsystem References (1 of 4)

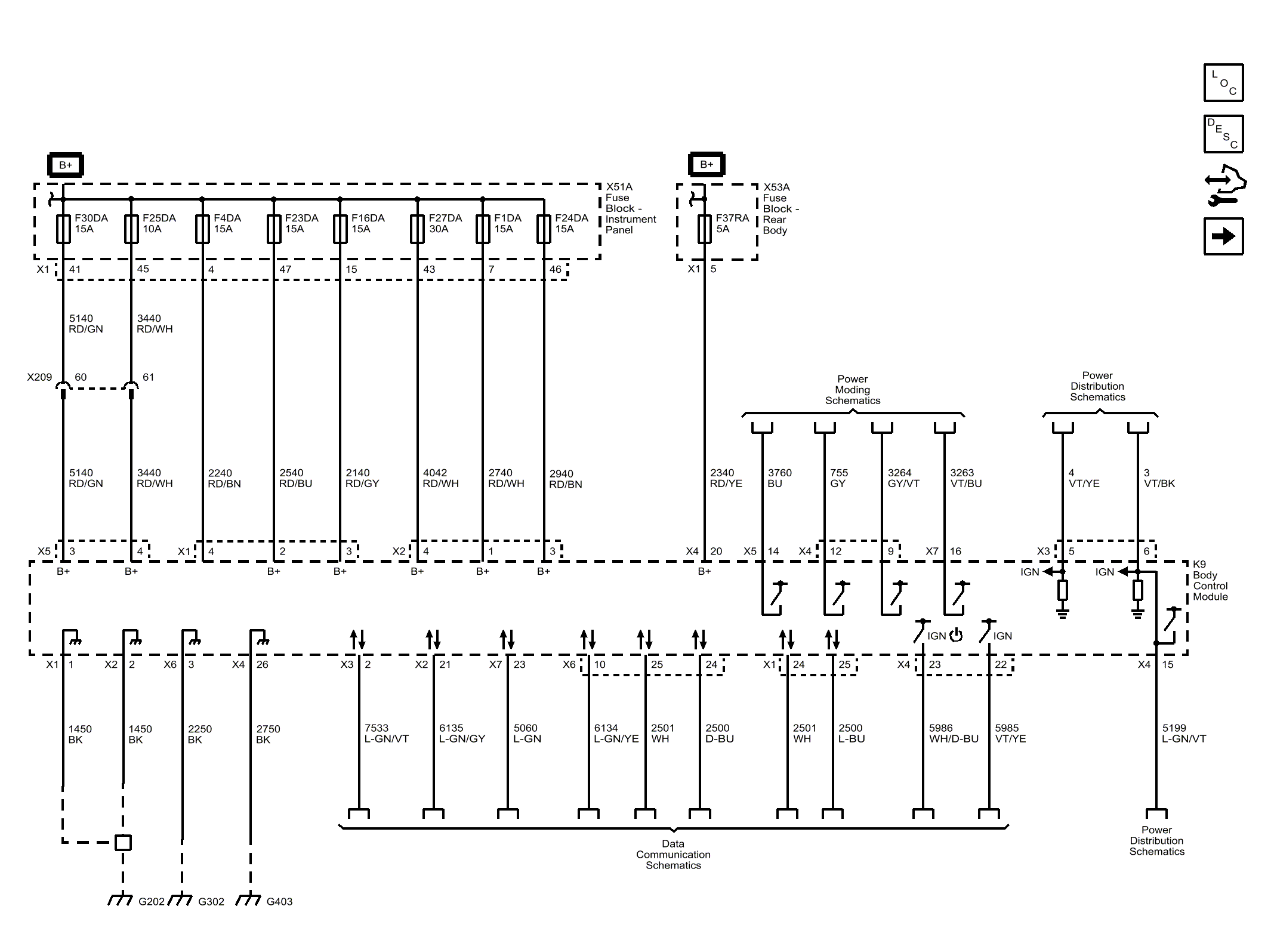

Fig 1: Module Power, Ground, Serial Data, and Subsystem References (1 of 4)
Courtesy of GENERAL MOTORS COMPANY
