Data Communication Wiring Schematics
›
Communications Enable
Communications Enable

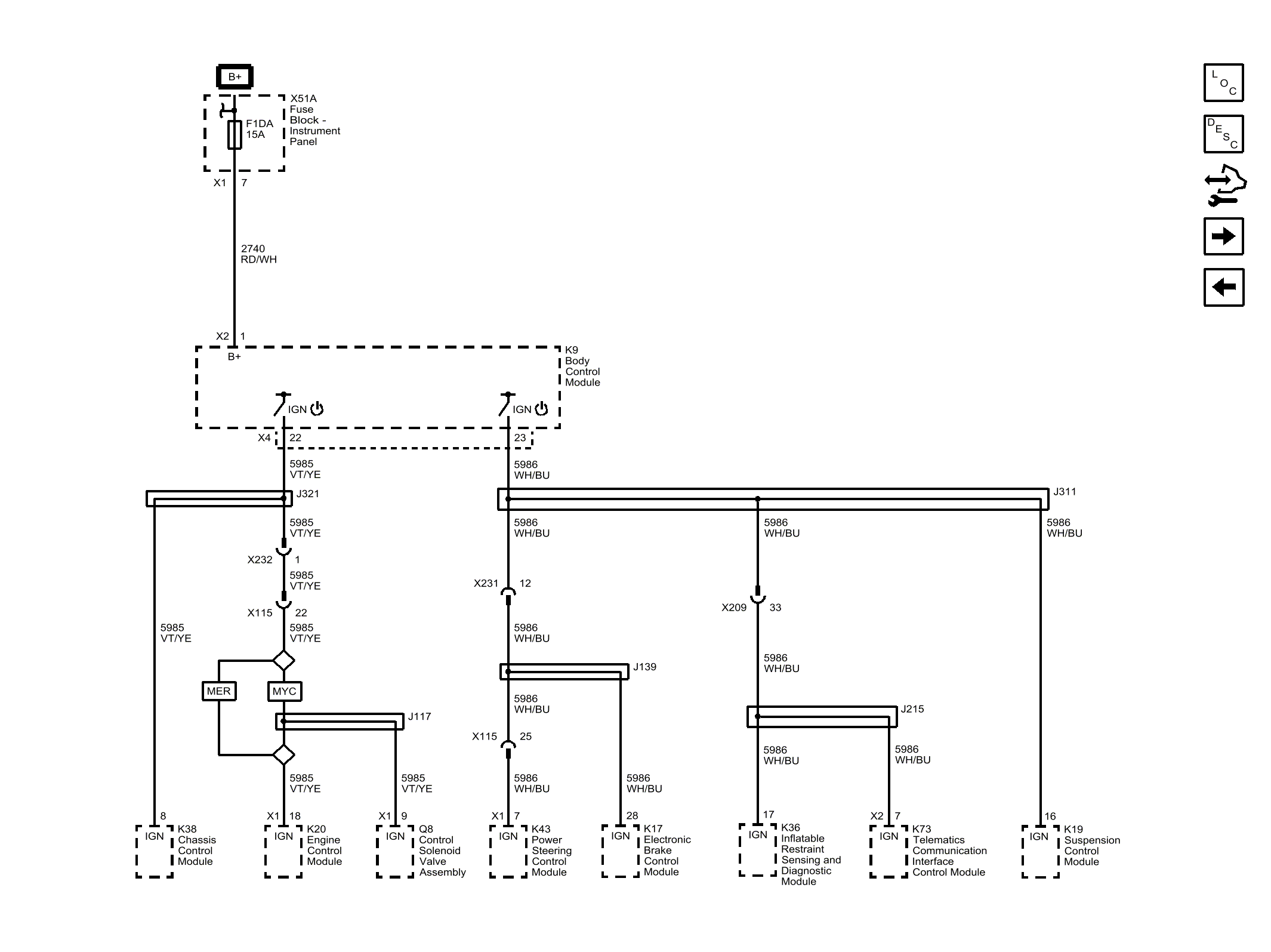

Fig 1: Communications Enable
Courtesy of GENERAL MOTORS COMPANY
Fig 1: Communications Enable
Courtesy of GENERAL MOTORS COMPANY
