Air Cleaner Outlet Duct Replacement

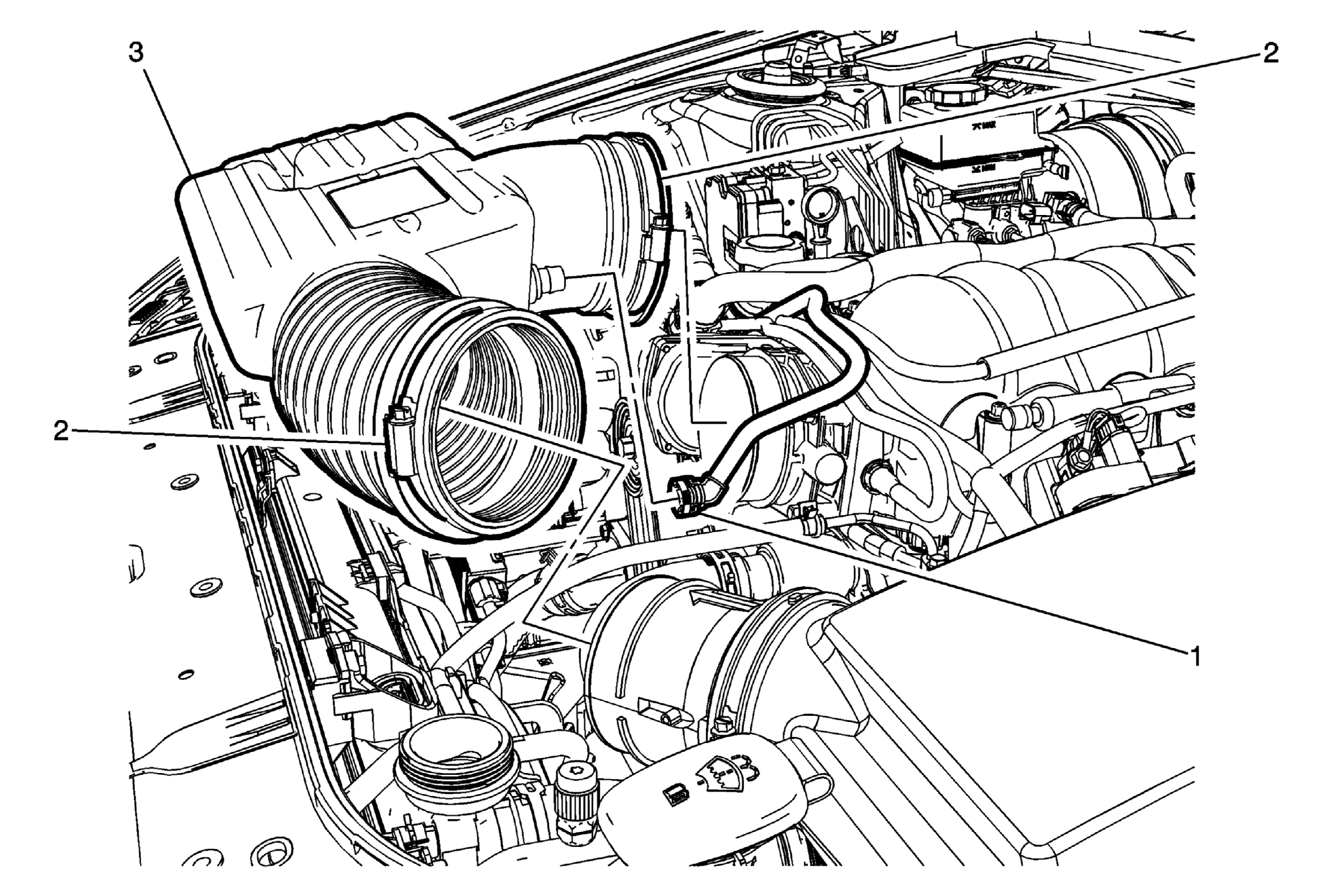

Fig 1: Air Cleaner Outlet Duct

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	PCV Tube Quick Connect Fitting
2	Air Cleaner Outlet Duct Clamps (Qty: 2) CAUTION: Refer to Fastener Caution .
3	Air Cleaner Outlet Duct
