Fuel Injection Fuel Feed Hose Replacement

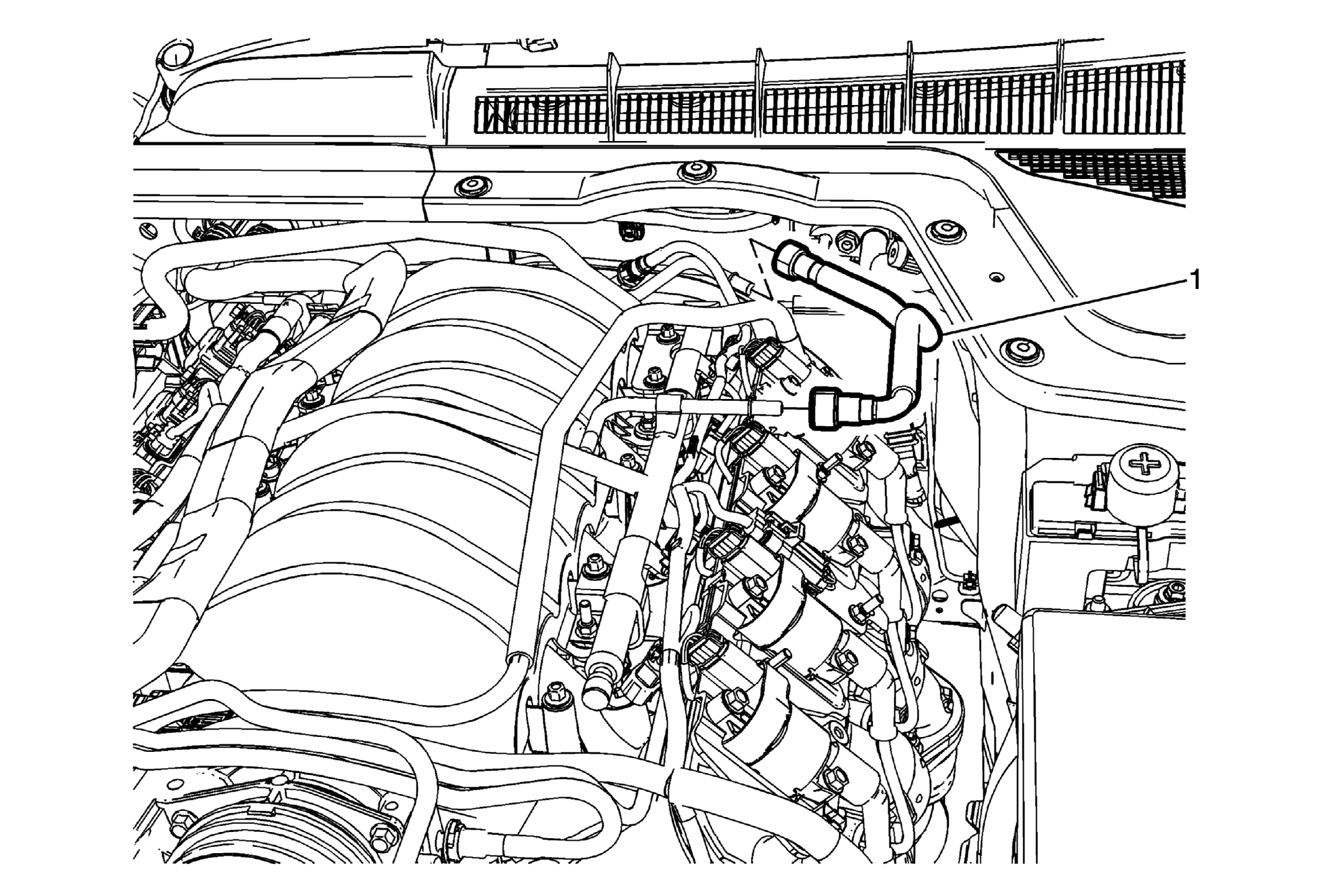

Fig 1: Fuel Injection Fuel Feed Hose

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Gasoline/Gasoline Vapors Warning . WARNING: Refer to Safety Glasses Warning . Preliminary Procedures Remove the engine cover. Refer to Engine Cover Replacement . Relieve the fuel pressure. Refer to Fuel Pressure Relief .
1	Fuel Injection Fuel Feed Hose Procedure Disconnect the quick connect fittings. Refer to Metal Collar Quick Connect Fitting Service .

Callout

Component Name

WARNING:

WARNING:

Preliminary Procedures

Fuel Injection Fuel Feed Hose
Procedure
Disconnect the quick connect fittings. Refer to Metal Collar Quick Connect Fitting Service .
