Engine Controls And Fuel - 6.2L (LS3) - Schematic Wiring Diagrams
›
Schematic Wiring Diagrams
›
Engine Controls Wiring Schematics
›
Controlled/Monitored Subsystem References
Controlled/Monitored Subsystem References

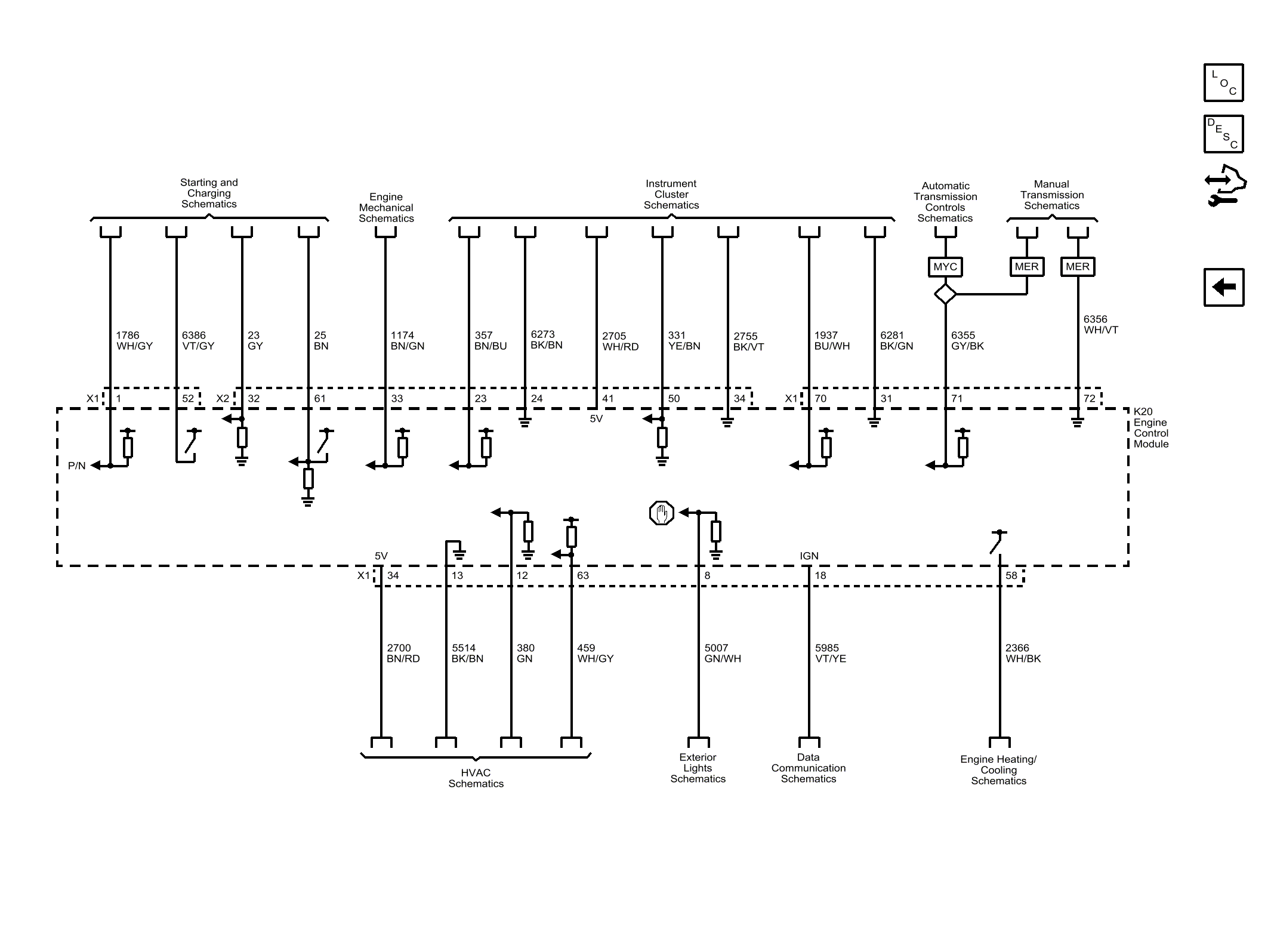

Fig 1: Controlled/Monitored Subsystem References
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
