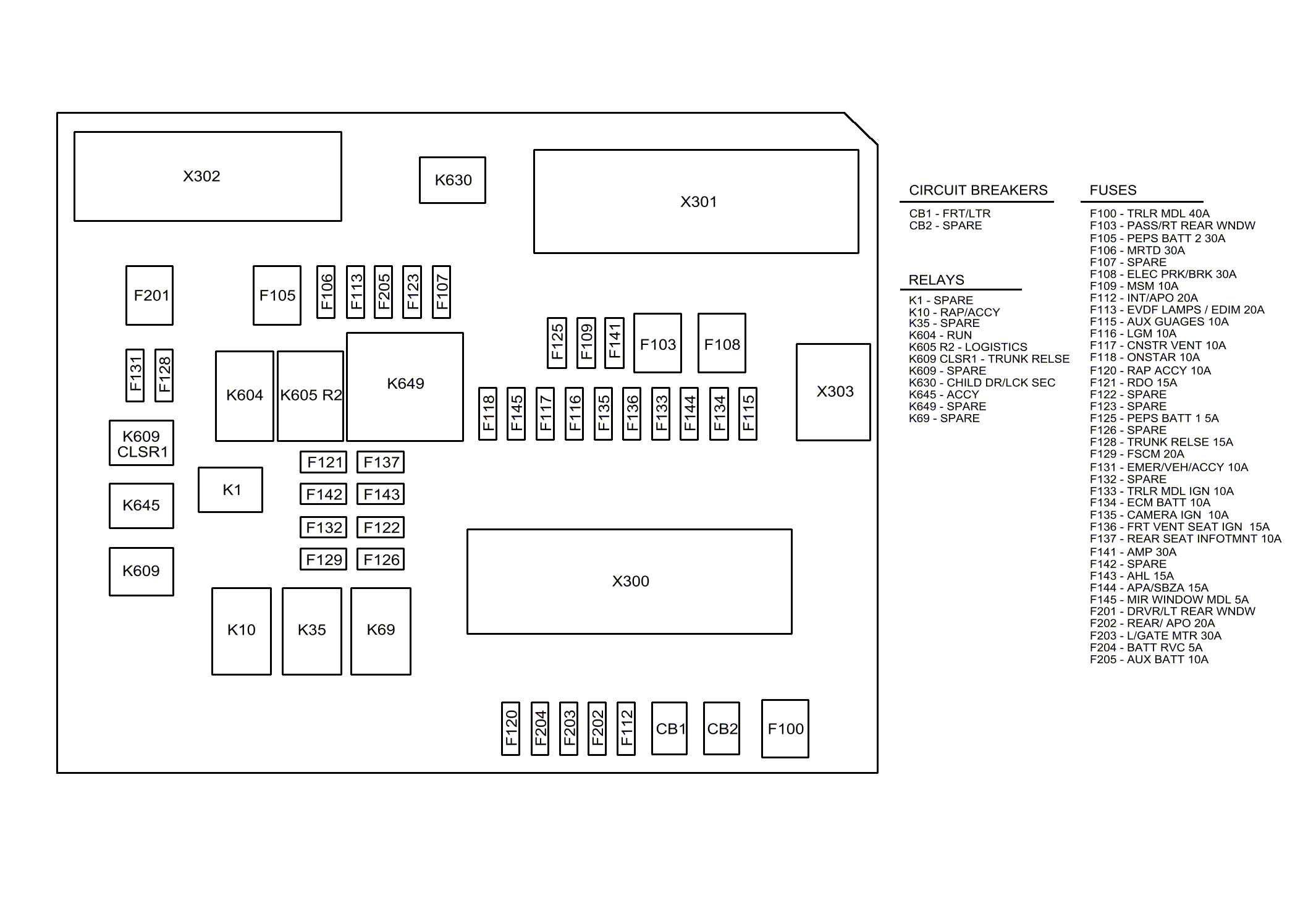

X53A Fuse Block - Rear Body Label
X53A FUSE BLOCK - REAR BODY FUSE AND RELAY IDENTIFICATION LEGEND
| No. | Device Label Name | Fuse And Relay Description | Rating | Circuits |
|---|---|---|---|---|
| Fuses | ||||
| F100 | TRLR MDL | F1RA Fuse | 40A | Not Used |
| F103 | PASS/RT REAR WNDW | F2RA Fuse | 30A | M74P Window Motor - Passenger, S79RR Window Switch - Right Rear |
| F105 | PEPS BATT 2 | F3RA Fuse | 30A | K84 Keyless Entry Control Module |
| F106 | MRTD | F4RA Fuse | 30A | K19 Suspension Control Module |
| F107 | SPARE | F5RA Fuse | - | Not Used |
| F108 | ELEC PRK/BRK | F6RA Fuse | 30A | K83 Parking Brake Control Module (J77) |
| F109 | MSM | F7RA Fuse | 10A | K40 Seat Memory Control Module |
| F112 | INT/APO | F8RA Fuse | 20A | X80F Accessory Power Receptacle - Front, X80H Accessory Power Receptacle - Center Console |
| F113 | EVDF LAMPS/EDIM | F9RA Fuse | 20A | Not Used |
| F115 | AUX GAUGES | F10RA Fuse | 10A | Not Used |
| F116 | LGM | F11RA Fuse | 10A | Not Used |
| F117 | CNSTR VENT | F12RA Fuse | 10A | Q13 Evaporative Emissions Vent Solenoid Valve |
| F118 | ONSTAR | F13RA Fuse | 10A | K73 Telematics Communication Interface Control Module |
| F120 | RAP ACCY | F14RA Fuse | 10A | Not Used |
| F121 | RDO | F15RA Fuse | 15A | A11 Radio |
| F122 | SPARE | F16RA Fuse | - | Not Used |
| F123 | SPARE | F17RA Fuse | - | Not Used |
| F125 | PEPS BATT 1 | F18RA Fuse | 5A | K84 Keyless Entry Control Module |
| F126 | SPARE | F19RA Fuse | - | Not Used |
| F128 | TRUNK RELSE | F20RA Fuse | 15A | KRR95B Rear Compartment Lid Unlatch Relay |
| F129 | FSCM | F21RA Fuse | 20A | K38 Chassis Control Module |
| F131 | EMER/VEH/ACCY | F22RA Fuse | 10A | Not Used |
| F132 | SPARE | F23RA Fuse | - | Not Used |
| F133 | TRLR MDL IGN | F24RA Fuse | 10A | Not Used |
| F134 | ECM BATT | F25RA Fuse | 10A | K20 Engine Control Module |
| F135 | CAMERA IGN | F26RA Fuse | 10A | B87 Rearview Camera |
| F136 | FRT VENT SEAT IGN | F27RA Fuse | 15A | K54D Seat Temperature Control Module - Driver, K54P Seat Temperature Control Module - Passenger |
| F137 | REAR SEAT INFOTMNT | F28RA Fuse | 10A | Not Used |
| F141 | AMP | F29RA Fuse | 30A | T3 Audio Amplifier |
| F142 | SPARE | F30RA Fuse | - | Not Used |
| F143 | AHL | F31RA Fuse | 15A | Not Used |
| F144 | APA/SBZA | F32RA Fuse | 15A | B174 Frontview Camera, B218L Side Object Sensor Module - Left, B218R Side Object Sensor Module - Right, K41 Front and Rear Parking Assist Control Module |
| F145 | MIR WNDW MDL | F33RA Fuse | 5A | K96 Mirror Control Module, S52 Outside Rearview Mirror Switch |
| F201 | DRVR/LT REAR WNDW | F34RA Fuse | 30A | M74D Window Motor - Driver, S79LR Window Switch - Left Rear |
| F202 | REAR/APO | F35RA Fuse | 20A | Not Used |
| F203 | L/GATE MTR | F36RA Fuse | 30A | Not Used |
| F204 | BATT RVC | F37RA Fuse | 5A | K9 Body Control Module |
| F205 | AUX BATT | F38RA Fuse | 10A | Not Used |
| Relays | ||||
| K1 | SPARE | - | - | Not Used |
| K10 | RAP/ACCY | KR76 Retained Accessory Power Relay | - | F8RA Fuse, F14RA Fuse |
| K35 | SPARE | - | - | Not Used |
| K604 | RUN | KR74 Ignition Run Relay | - | F38RA Fuse |
| K605 | R2 - LOGISTICS | KR104B Battery Saver Relay 2 | - | F13RA Fuse, F15RA Fuse, F32RA Fuse |
| K609 | CLSR1 - TRUNK RELSE | KR95B Rear Compartment Lid Unlatch Relay | - | M40 Rear Compartment Lid Latch |
| K609 | SPARE | - | - | Not Used |
| K630 | CHILD DR/LCK SEC | KR113 Child Security Lock Disable Relay | - | A23LR Door Latch Assembly - Left Rear, A23P Door Latch Assembly - Passenger, A23RR Door Latch Assembly - Right Rear |
| K645 | ACCY | KR80 Accessory Relay | - | Not Used |
| K649 | SPARE | - | - | Not Used |
| K69 | SPARE | - | - | Not Used |
