Theft Deterrent Module Replacement

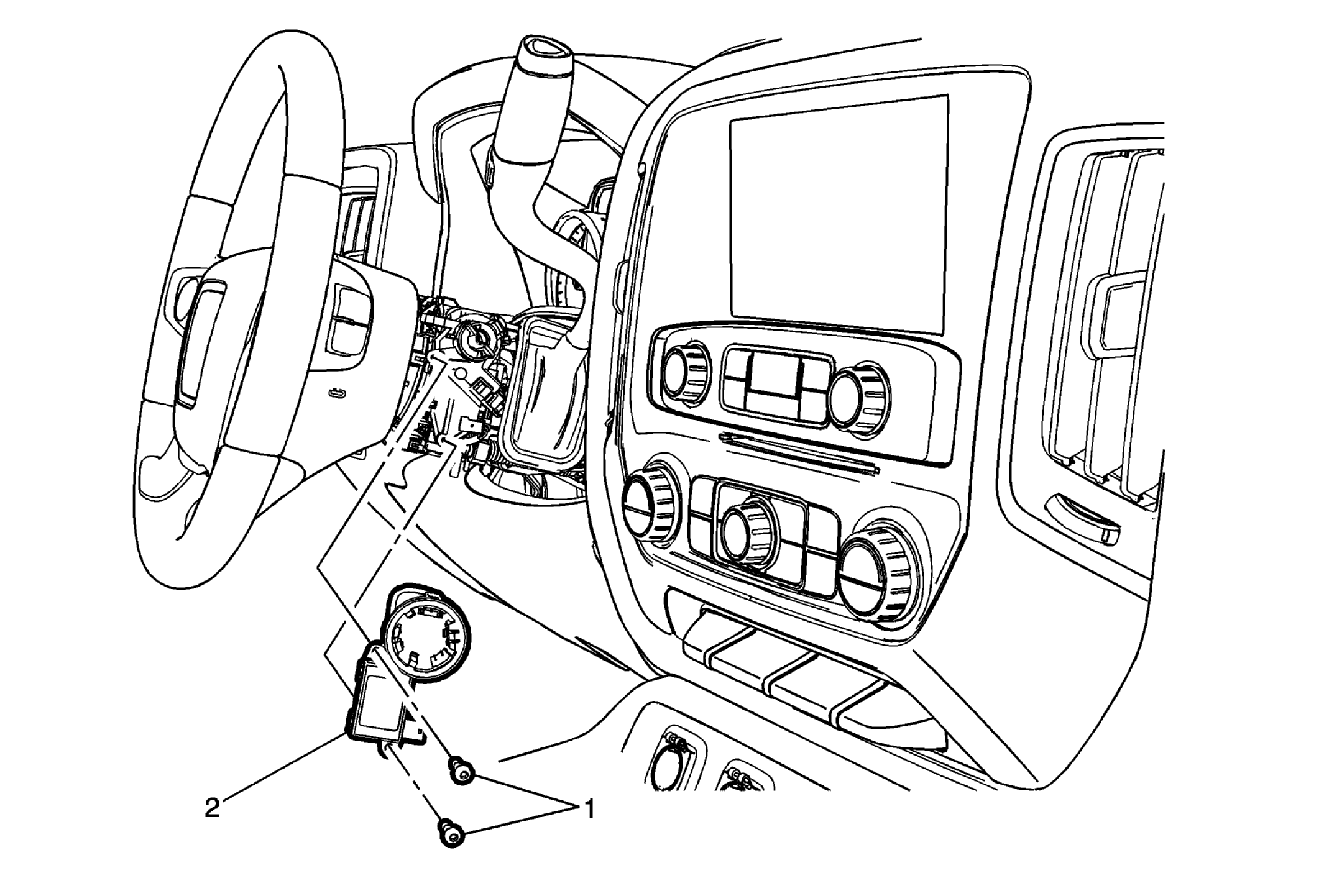

Fig 1: Theft Deterrent Module
GM3256788Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to Battery Disconnect Warning .

Preliminary Procedure

  1. Disconnect battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (Dual Battery)Battery Negative Cable Disconnection and Connection (Single Battery) .
  2. Remove the steering column shroud. Refer to Steering Column Shroud Replacement (RPO N33)Steering Column Shroud Replacement (RPO N37) .
  3. Remove the ignition lock cylinder. Refer to Ignition Lock Cylinder Replacement .
1 Theft Deterrent Module Screw (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
1.5 N.m (13 lb in)
2 Theft Deterrent Module

Procedure

  1. Disconnect the electrical connector.
  2. Carefully unclip the bracket from ignition key housing.
  3. Refer to Control Module References for programming and setup information.
