Module Power, Ground and Serial Data

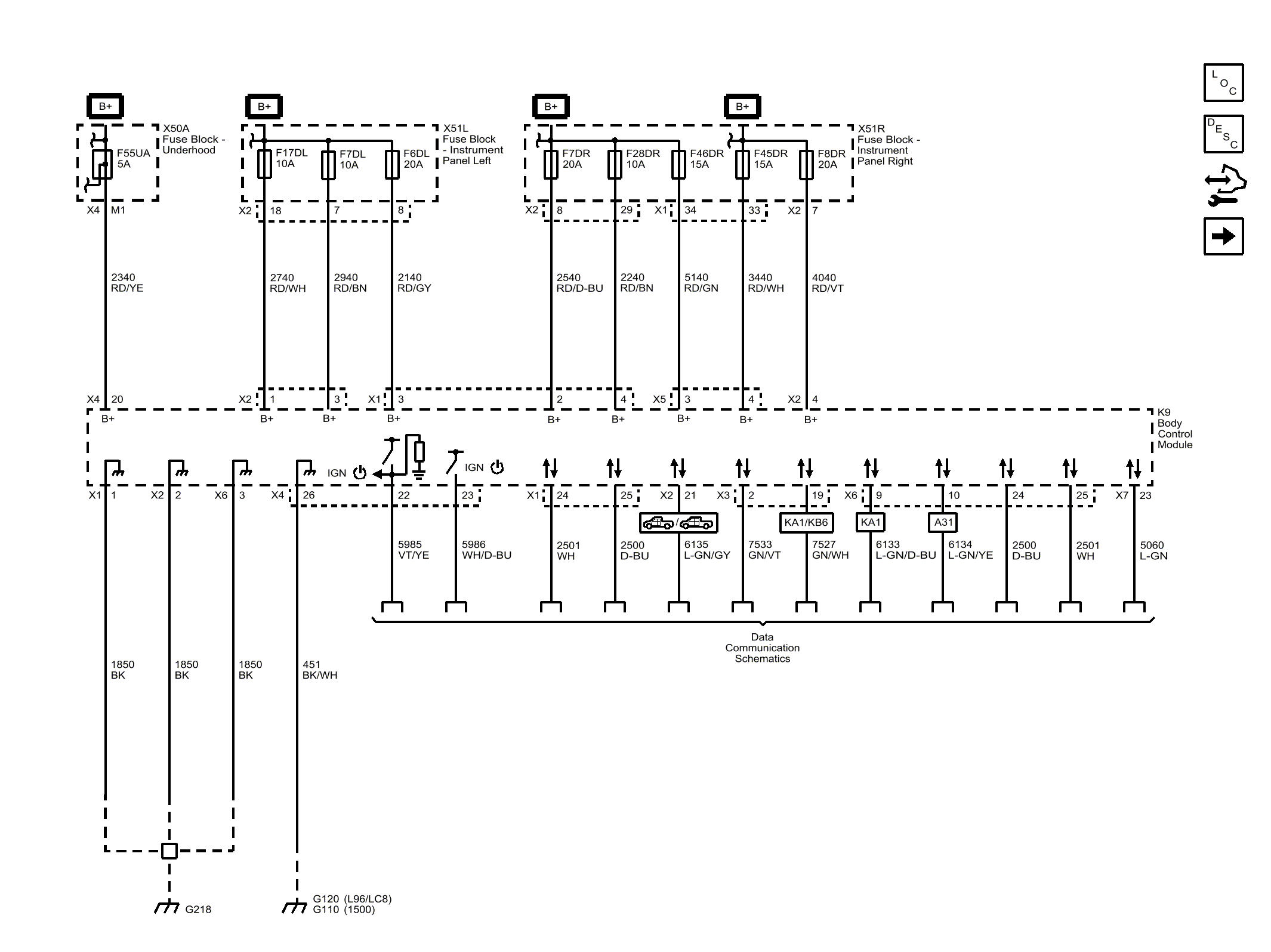

Fig 1: Module Power, Ground and Serial Data
GM3619403Courtesy of GENERAL MOTORS COMPANY
