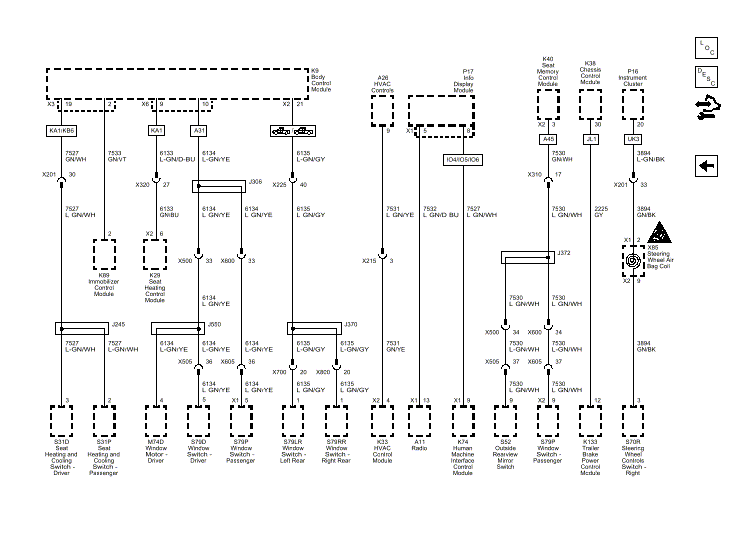

Home › Chevrolet › 2015 › Silverado 1500 SSV, 4WD, Part Time T/Case Control, Gas › Repair and Diagnosis › Engine Performance › System › Data Communication System › Schematic Wiring Diagrams › Data Communication Wiring Schematics › Linear Interconnect Network
