Powertrain Expansion Bus (LML)
Powertrain Expansion Bus (LML)

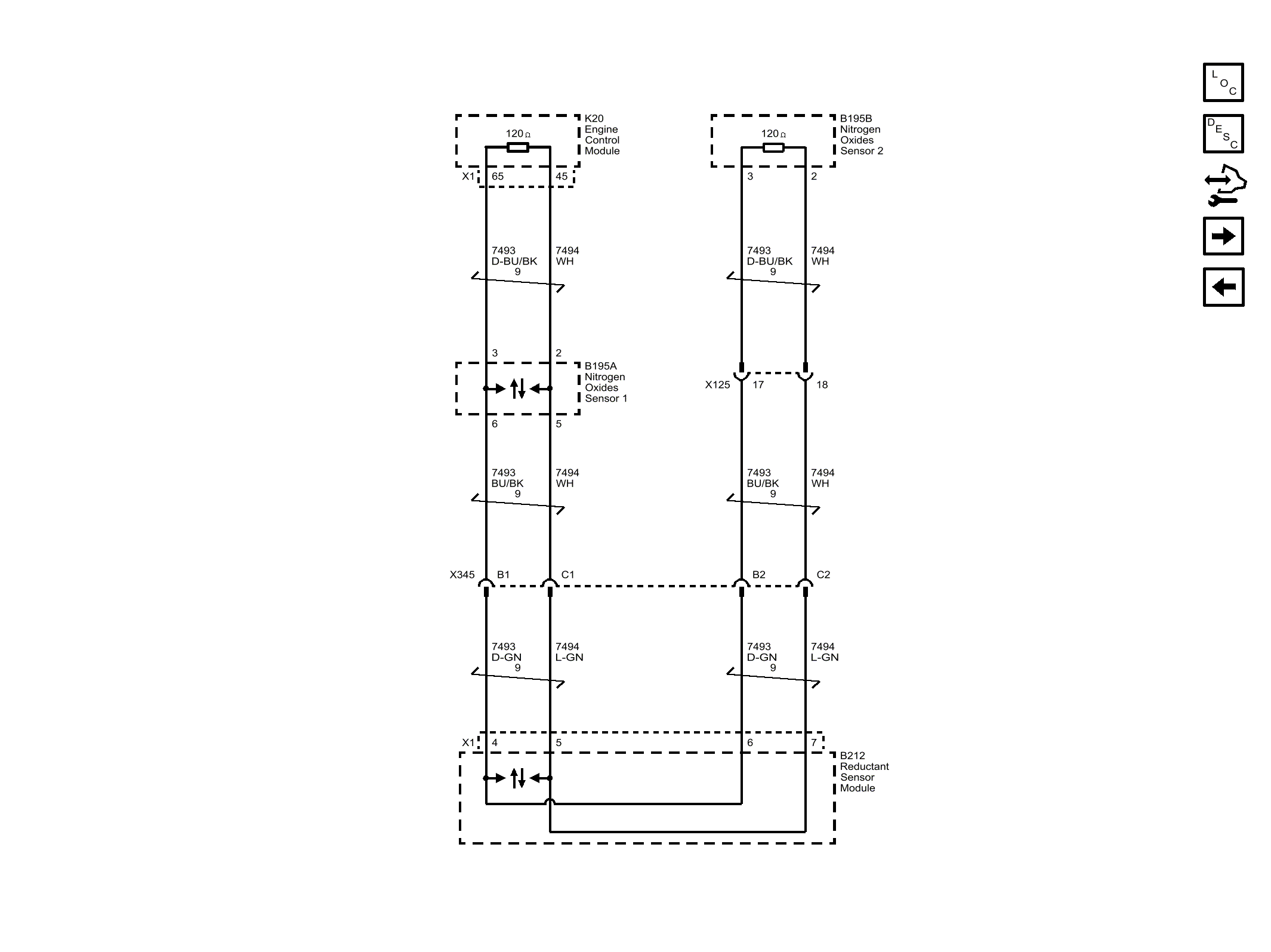

Fig 1: Powertrain Expansion Bus (LML)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
