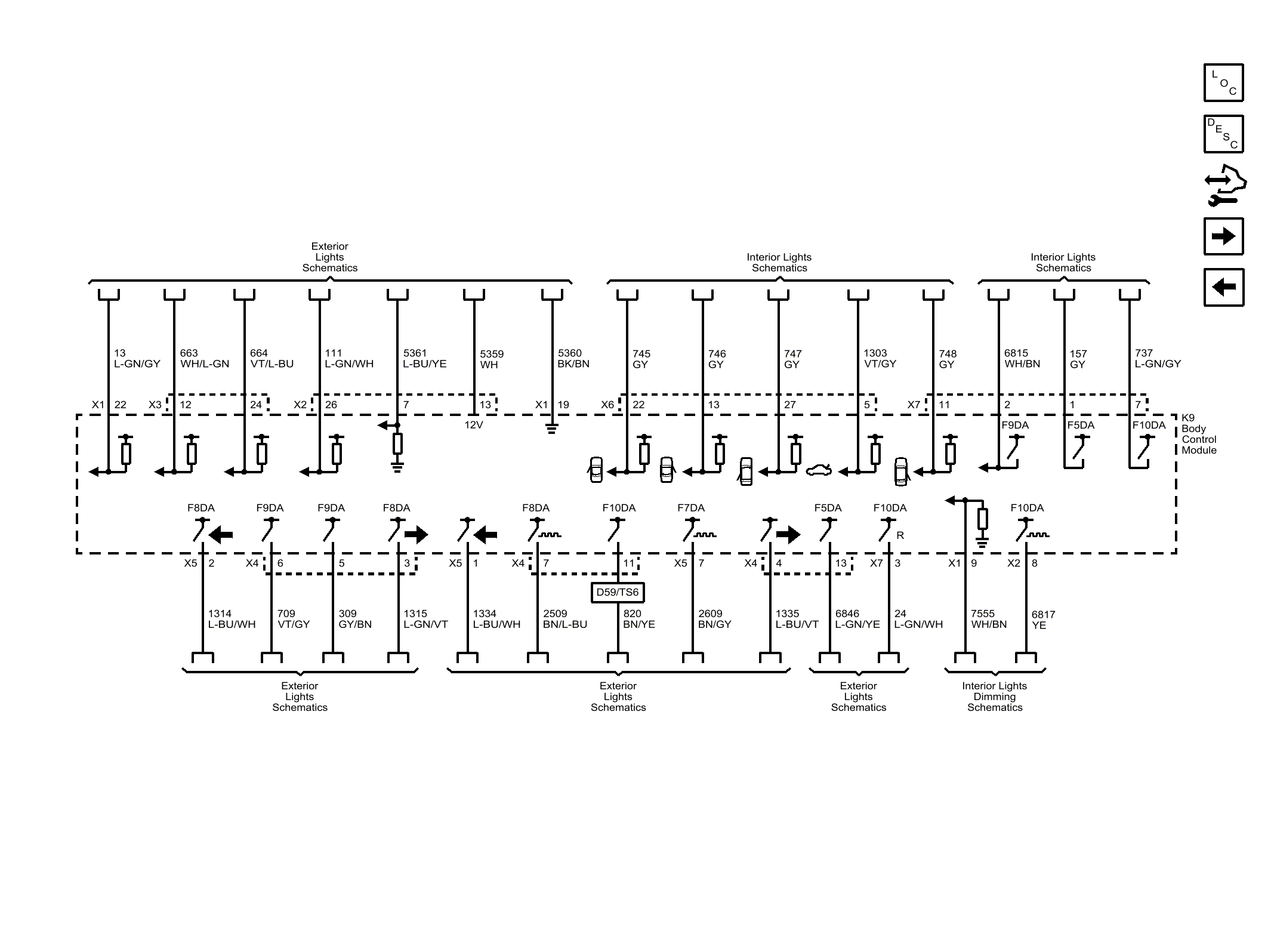

Home › Chevrolet › 2015 › Sonic RS, 4D Hatchback, Automatic Trans › Repair and Diagnosis › Engine Performance › System › Data Communication System › Schematic Wiring Diagrams › Body Control System Wiring Schematics › Subsystem References (3 of 5)
