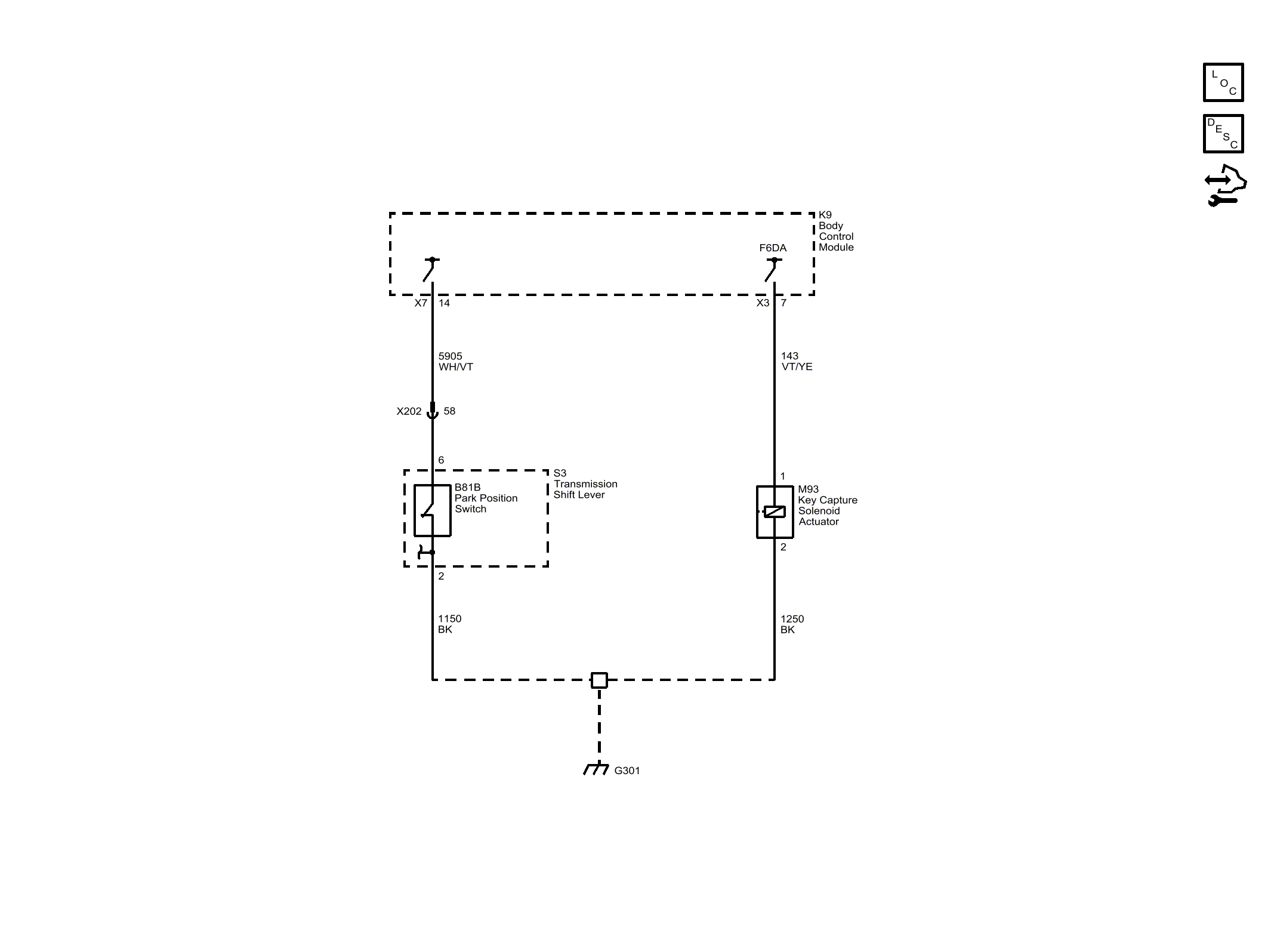

Home › Chevrolet › 2015 › Sonic RS, 4D Hatchback, Standard Trans › Repair and Diagnosis › Transmission › Automatic Trans › Shift Lock Control System › Schematic Wiring Diagrams › Shift Lock Control Wiring Schematics › Shift Lock
