Removal Procedure

Remove the brake pressure modulator valve (BPMV) assembly. Refer to Brake Pressure Modulator Valve Replacement .
Remove the electronic brake control module (EBCM) bolts (1).

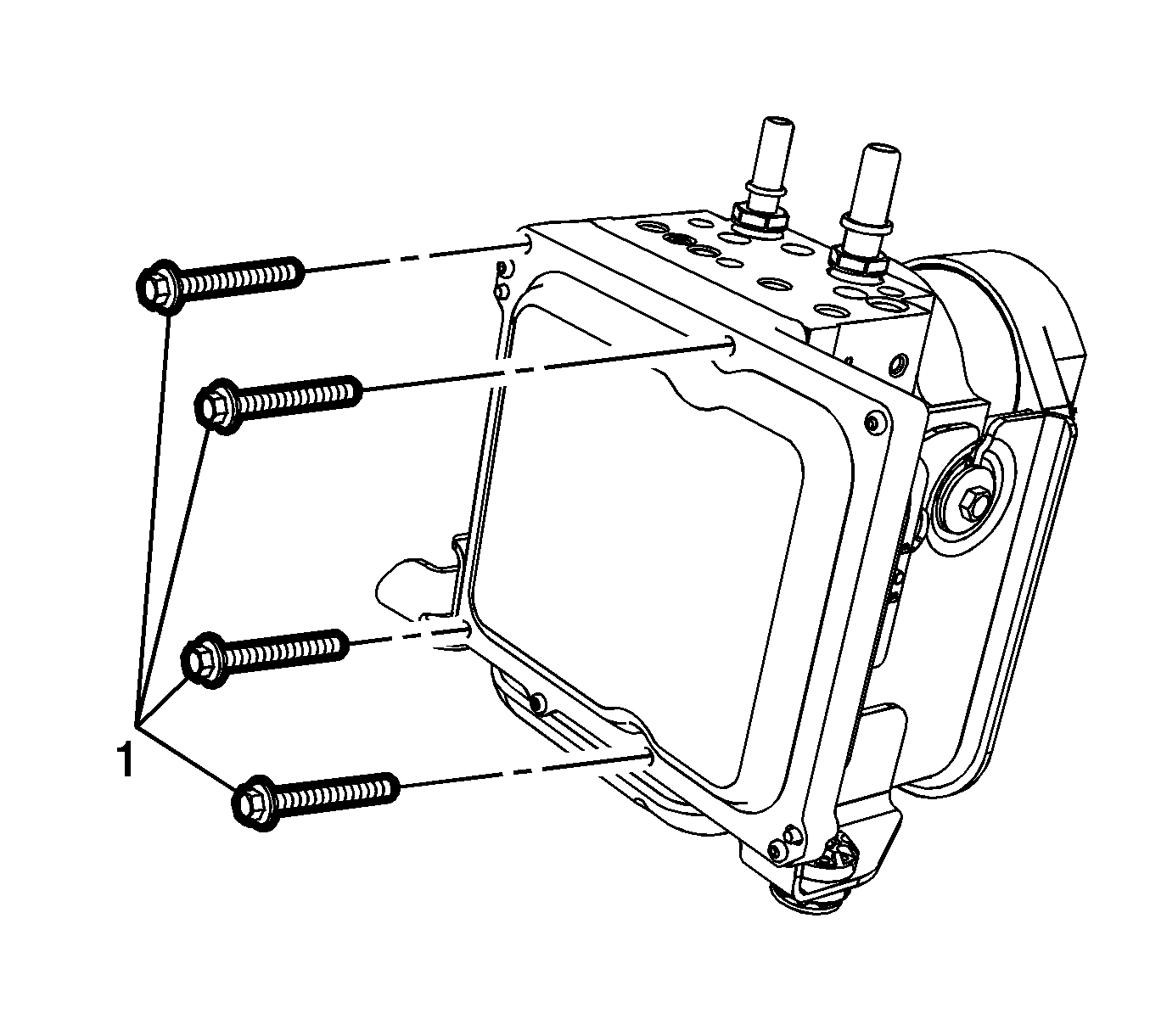

Fig 1: Electronic Brake Control Module (EBCM) Bolts
Courtesy of GENERAL MOTORS COMPANY
Carefully separate the EBCM (1) from the BPMV.

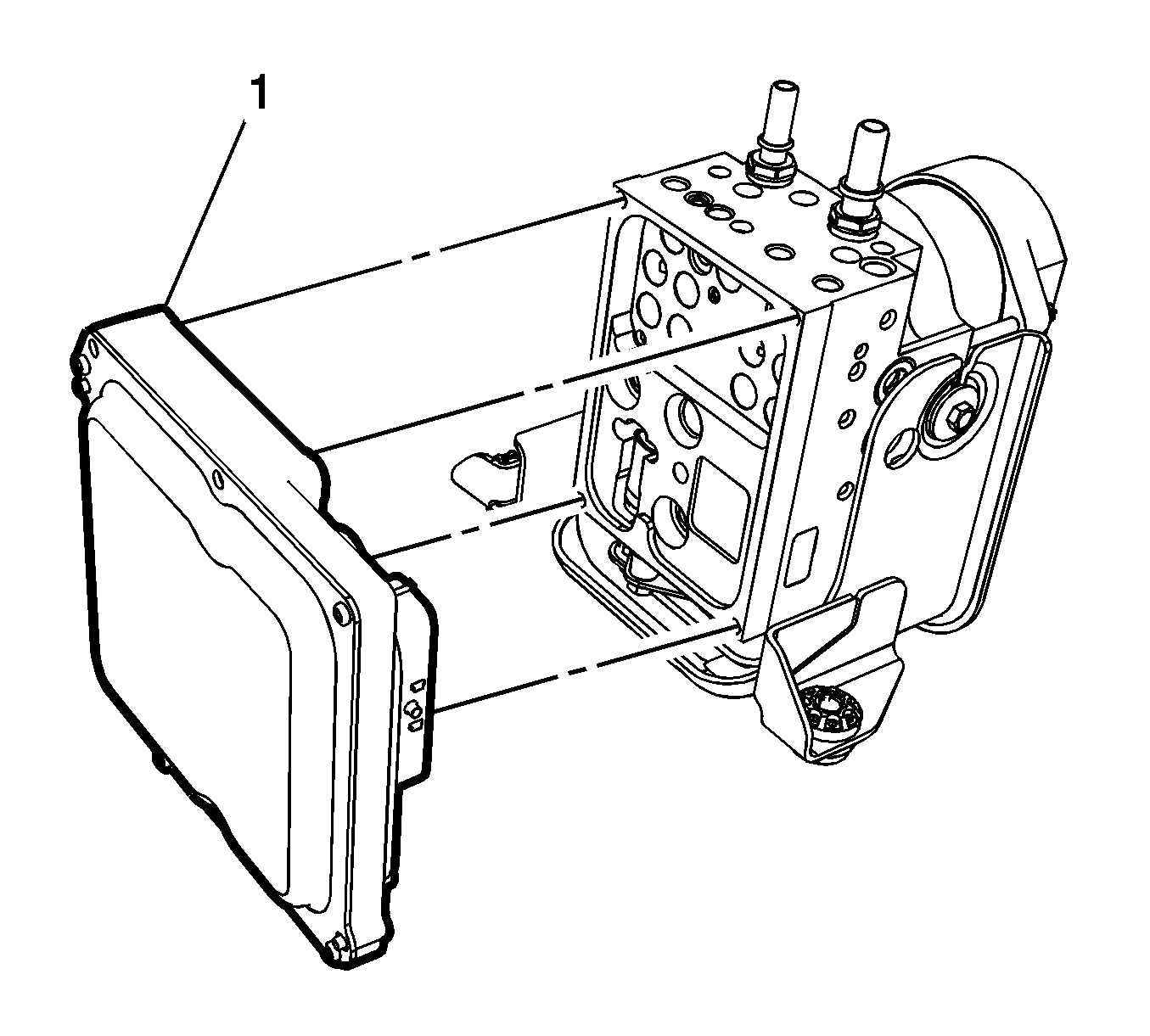

Fig 2: EBCM And BPMV
Courtesy of GENERAL MOTORS COMPANY

NOTE: Do not pry the EBCM from the BPMV. The EBCM must be pulled back evenly.
