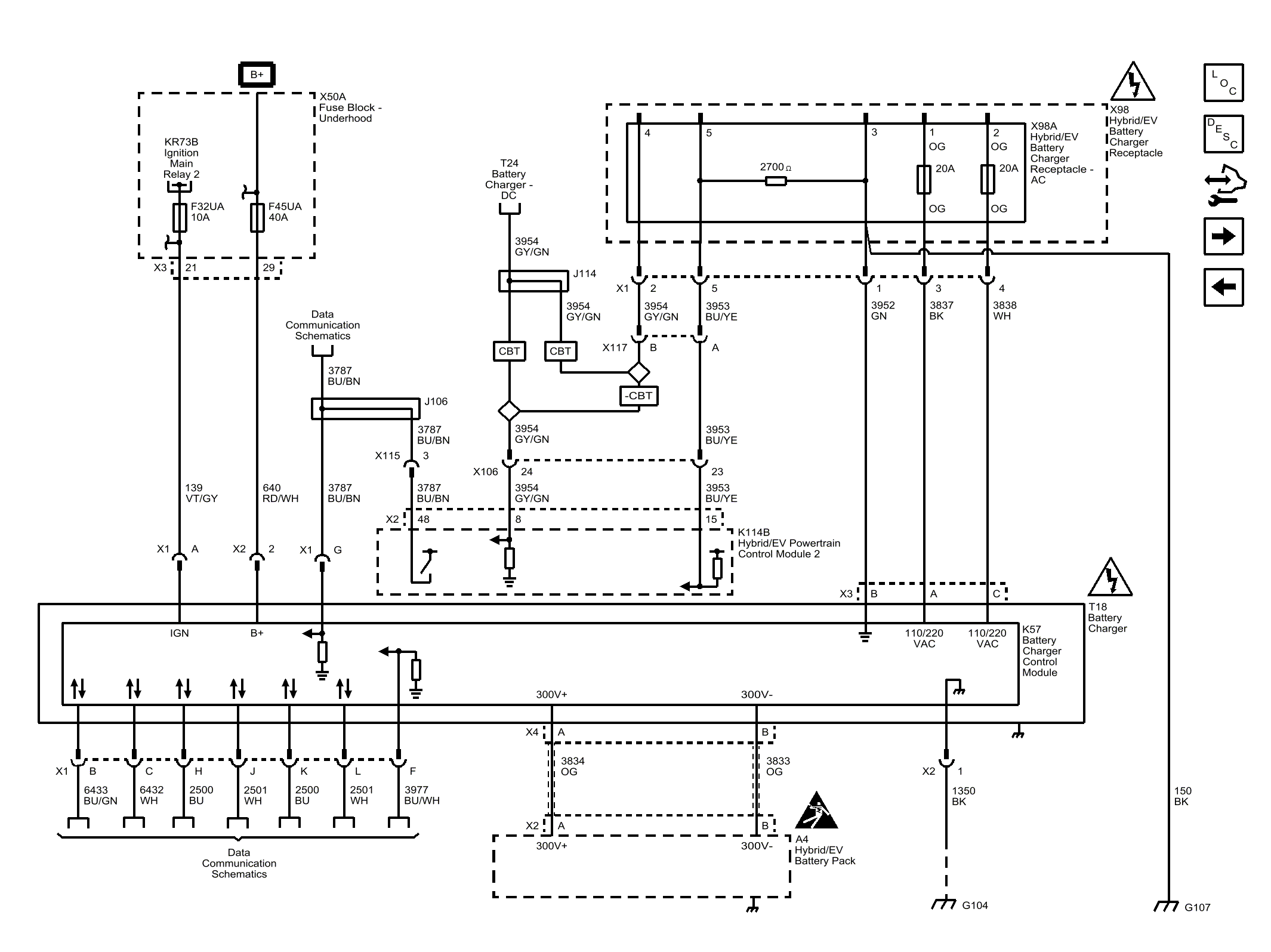

Home › Chevrolet › 2015 › Spark EV › Repair and Diagnosis › Electrical › Body Electrical › Plug-In Charging System › Schematic Wiring Diagrams › Plug-In Charging Wiring Schematics › AC Battery Charging
