Driver Information Display Switch Replacement

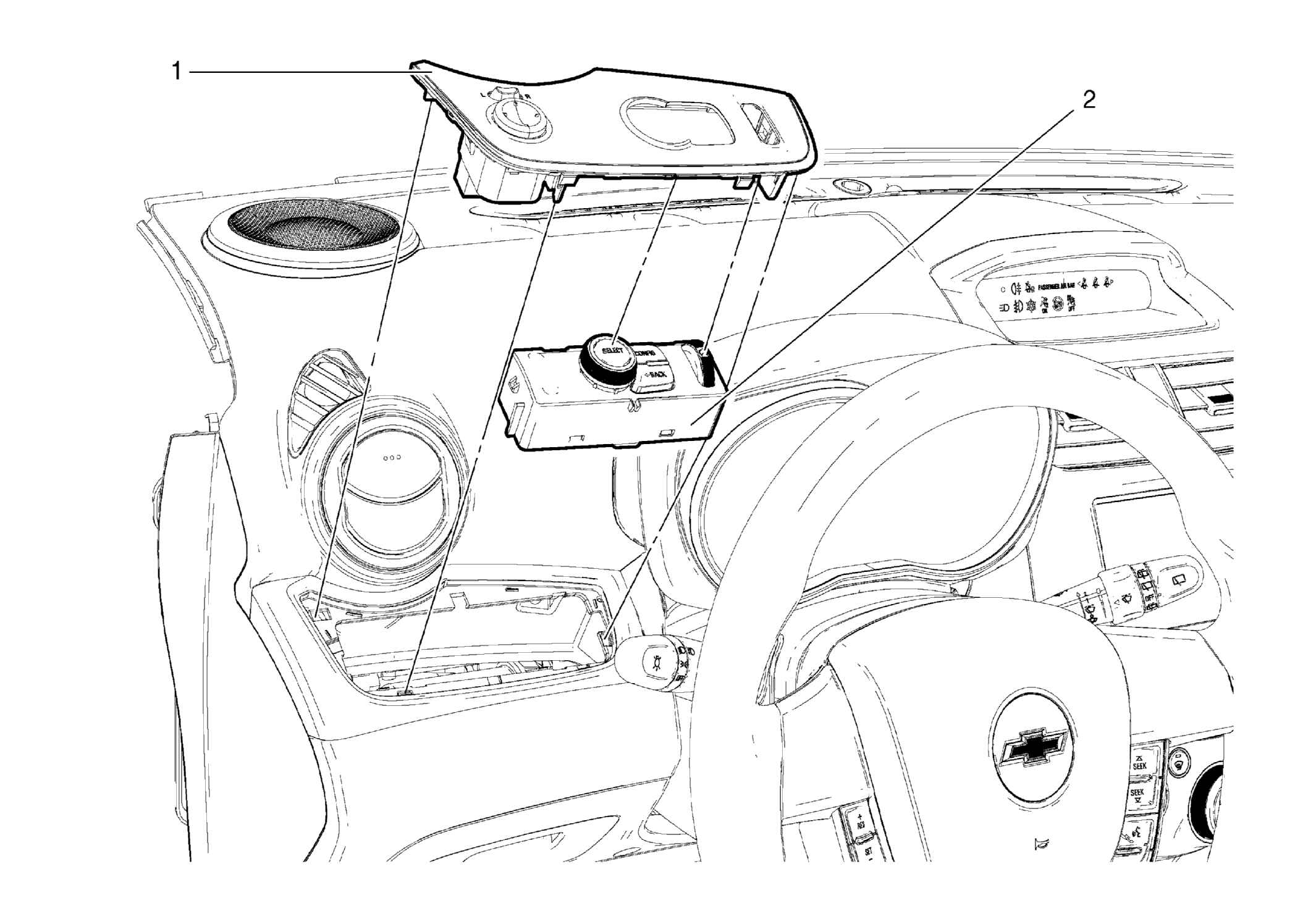

Fig 1: Driver Information Display Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Outside Rearview Mirror Remote Control Switch Procedure Disconnect the electrical connections. Use a flat bladed plastic trim tool to aid in the removal from the instrument trim panel applique.
2	Driver Information Display Switch Procedure Release the tabs on the switch to remove from the outside rearview mirror control switch.

Callout

Component Name

Outside Rearview Mirror Remote Control Switch

Procedure

Disconnect the electrical connections.
Use a flat bladed plastic trim tool to aid in the removal from the instrument trim panel applique.

Driver Information Display Switch
Procedure
Release the tabs on the switch to remove from the outside rearview mirror control switch.
