Hybrid/EV Powertrain Control Module 1/Power Inverter Module Power, Ground and Data Communication

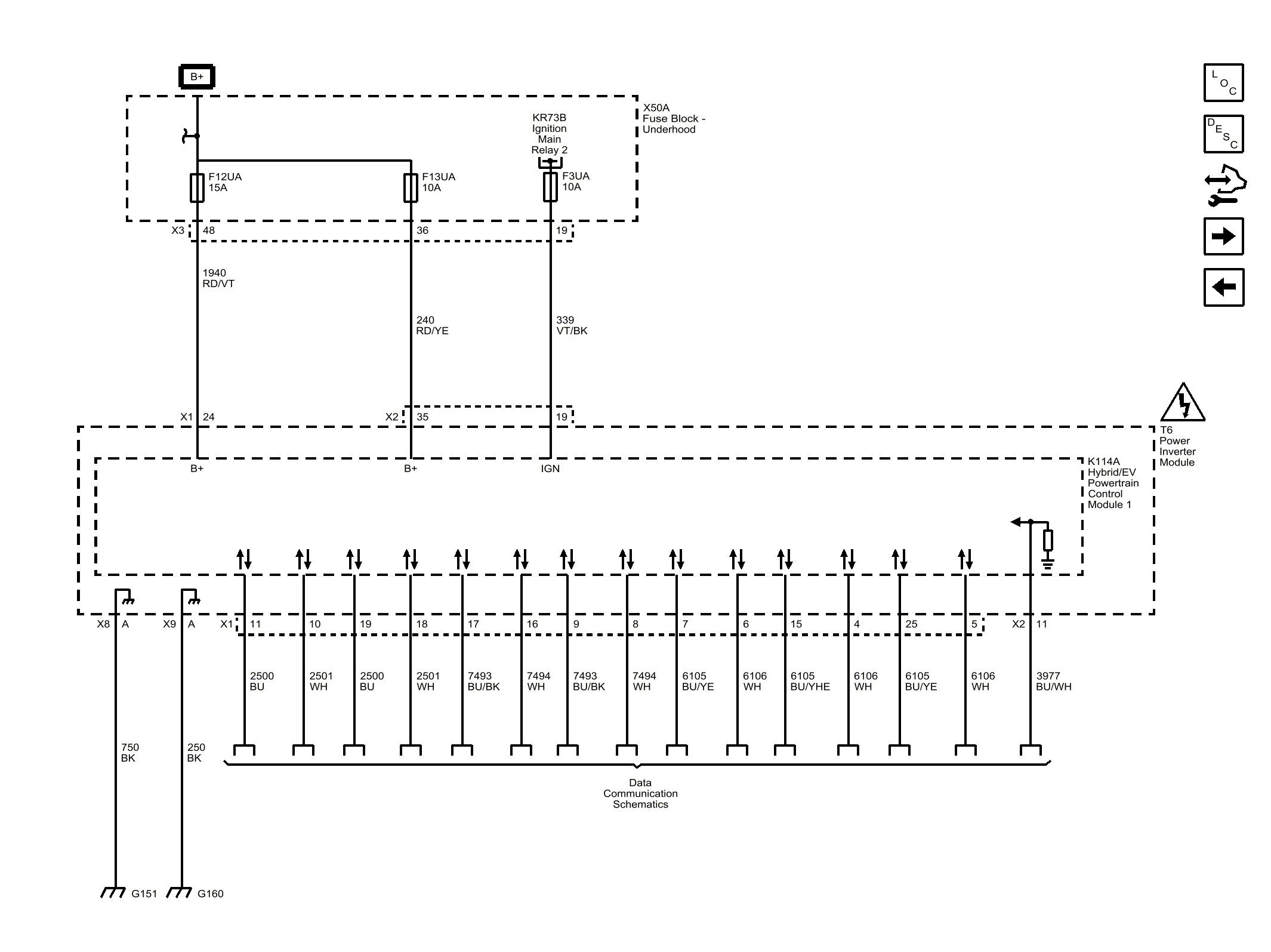

Fig 1: Hybrid/EV Powertrain Control Module 1/Power Inverter Module Power, Ground and Data Communication
GM3666201Courtesy of GENERAL MOTORS COMPANY
