Power, Ground and Low Speed GMLAN
Power, Ground and Low Speed GMLAN

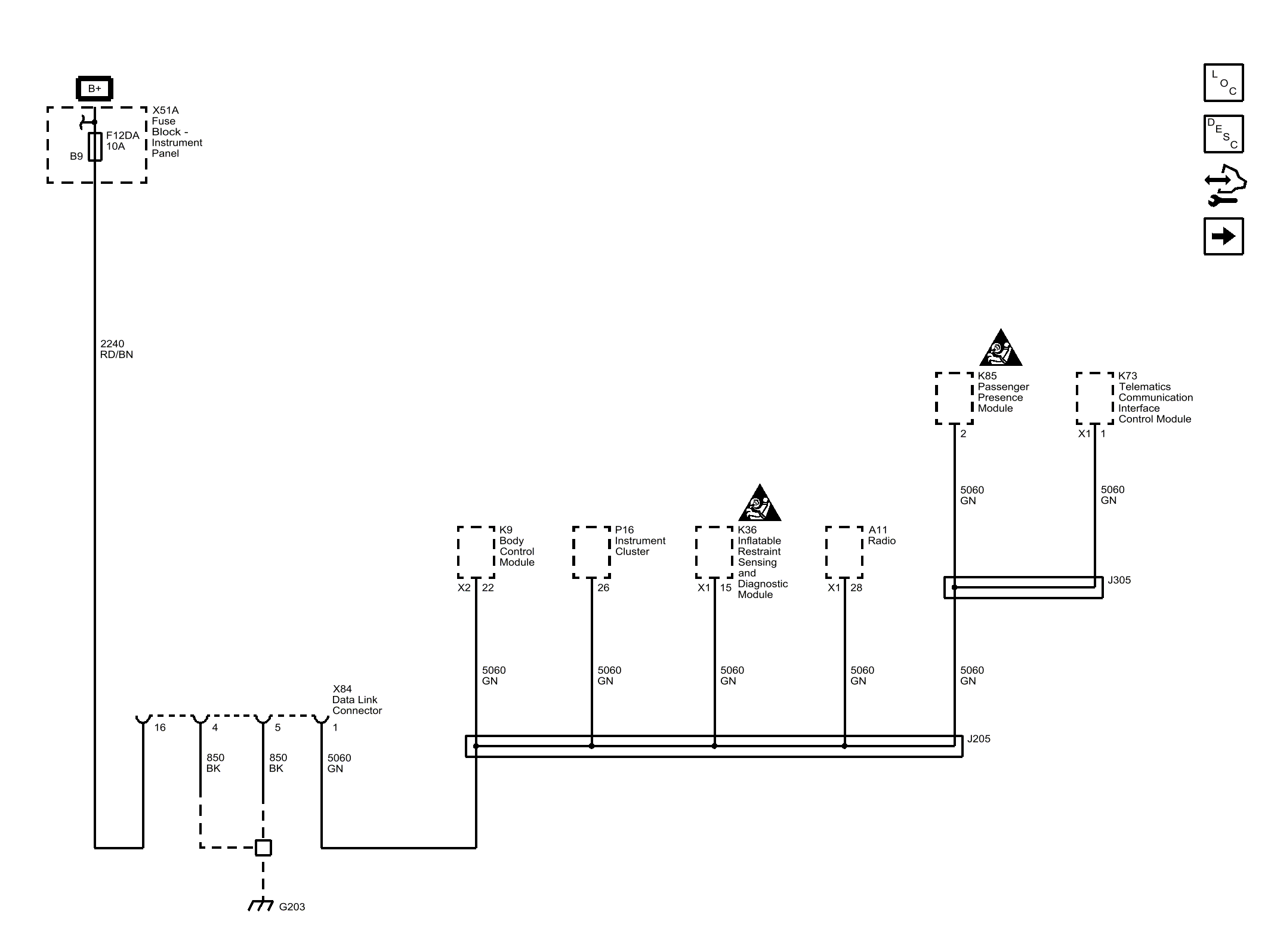

Fig 1: Power, Ground and Low Speed GMLAN
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
