Rear Side Door Window Frame Front Applique Replacement

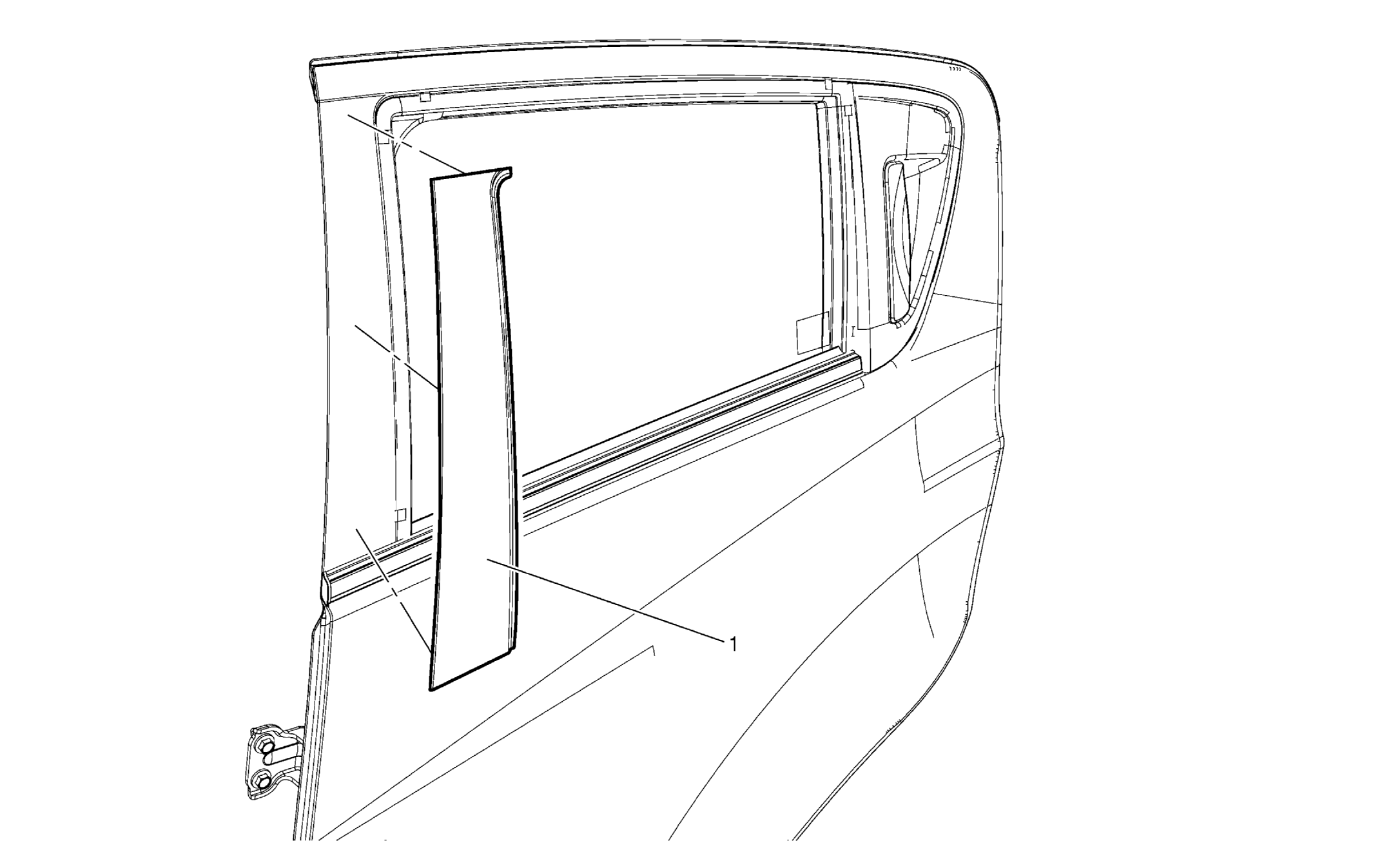

Fig 1: Rear Side Door Window Frame Front Applique Tape

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear side door window outer sealing strip. Refer to Rear Side Door Window Outer Sealing Strip Replacement . Grasp upper corner of the window weatherstrip, pull downward releasing the assembly from the door frame. NOTE: Do not need to remove the weatherstrip assembly. Just partially peel off the weatherstrip to attach the tape.
1	Rear Side Door Window Frame Front Applique Procedure Fit the tape pre-mask line to the panel character line. Peel off the inside paper. Attach the tape to the door panel. Press the tape by using a squeegee or equivalent. Peel off the outside paper. Wrap the corner areas of the tape. Inspect the tape is properly attached. NOTE: This applique is an adhesive tape.

Callout

Component Name

Preliminary Procedures

Remove the rear side door window outer sealing strip. Refer to Rear Side Door Window Outer Sealing Strip Replacement .
Grasp upper corner of the window weatherstrip, pull downward releasing the assembly from the door frame.

NOTE: Do not need to remove the weatherstrip assembly. Just partially peel off the weatherstrip to attach the tape.

Rear Side Door Window Frame Front Applique

Procedure

NOTE: This applique is an adhesive tape.
