HVAC Assembly Components

HVAC Assembly Components

Items
1: B39 A/C Evaporator Temperature Sensor (C60) B39 A/C Evaporator Temperature Sensor
2: R3 Blower Motor Resistor (C41/C60) R3 Blower Motor Resistor
3: M8 Blower Motor M8 Blower Motor

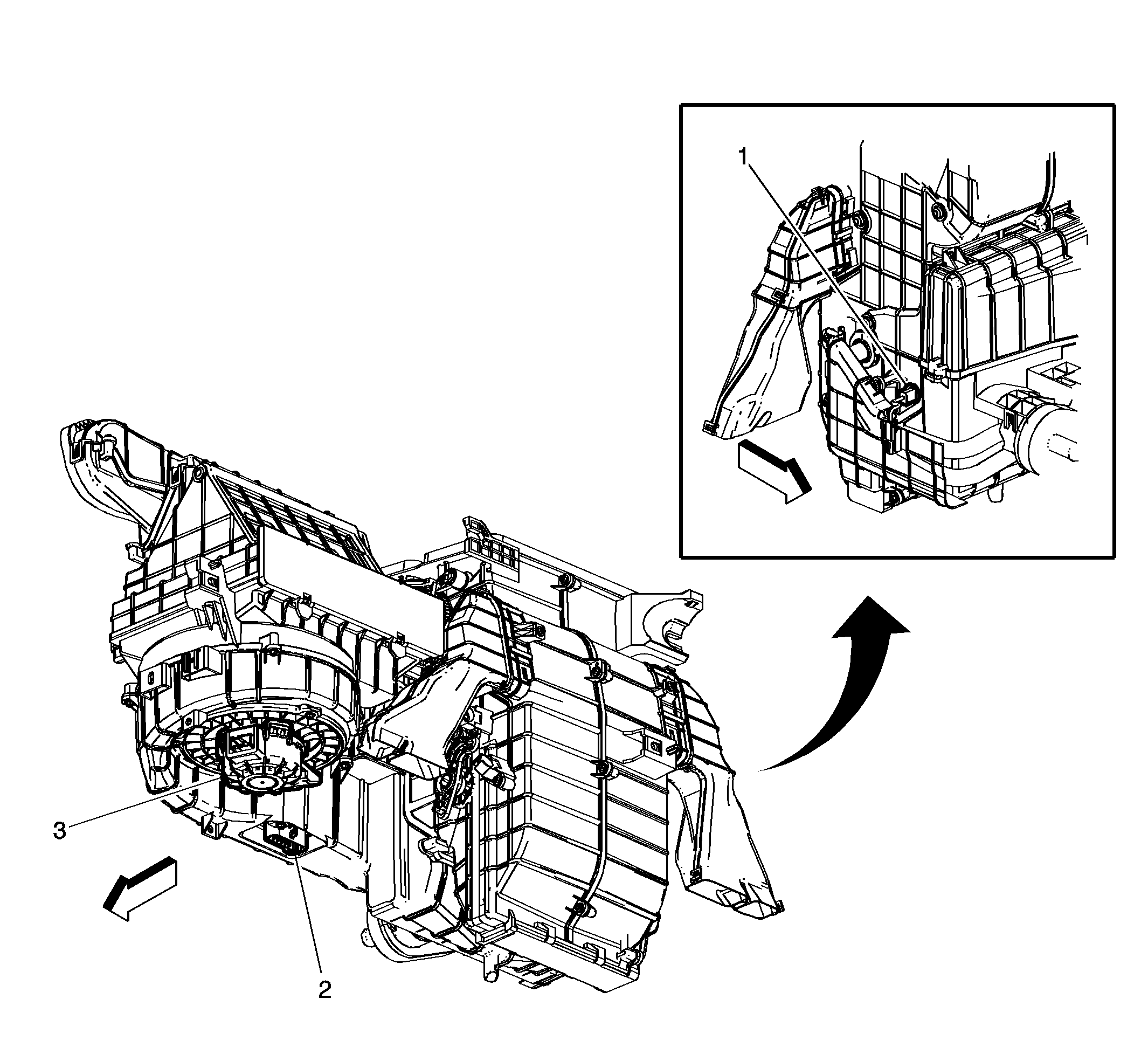

Fig 1: HVAC Assembly Components
GM3627468Courtesy of GENERAL MOTORS COMPANY
