Keyless Entry - Passive, and Keyless Start

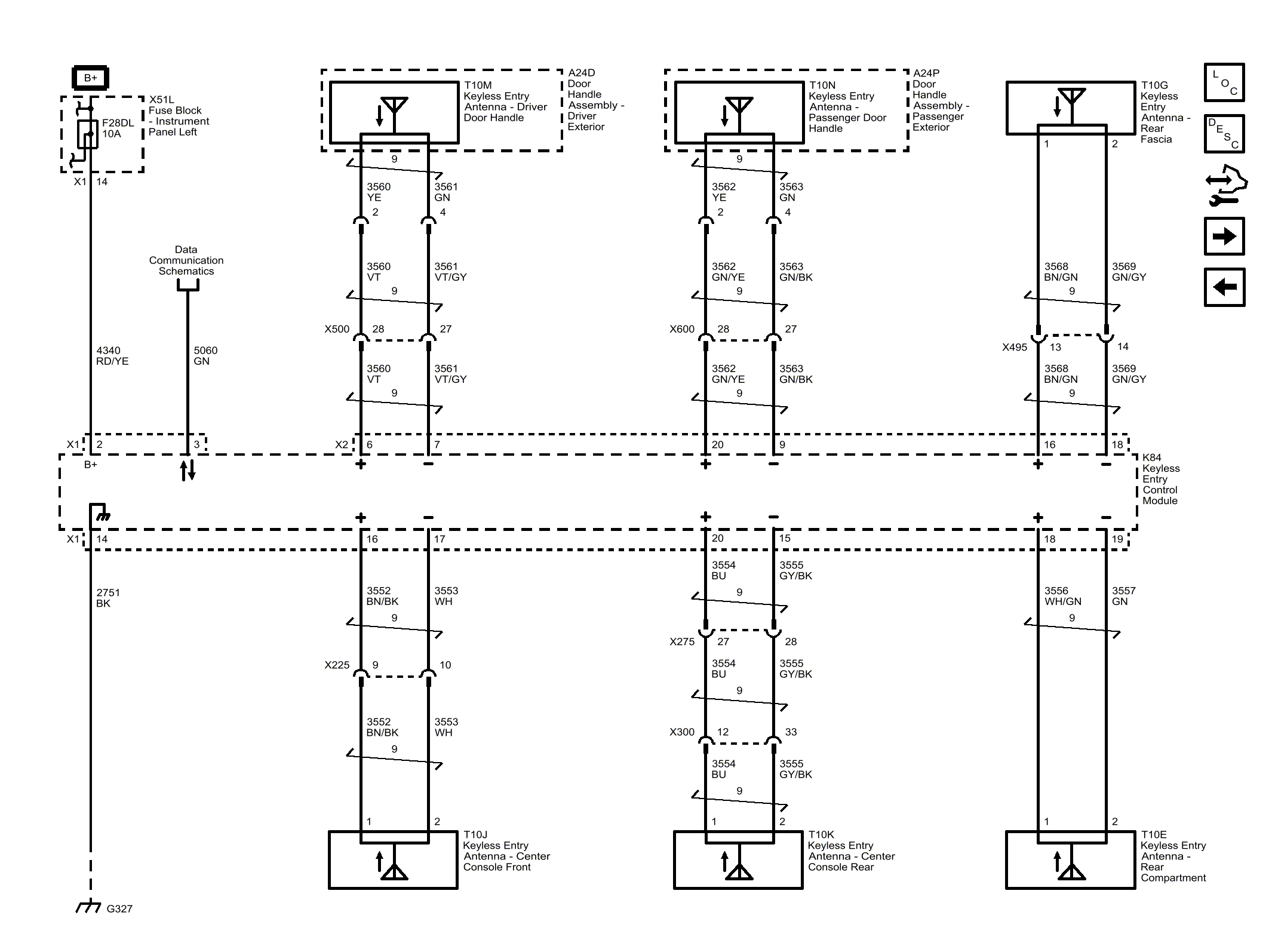

Fig 1: Keyless Entry - Passive, and Keyless Start
GM3794361Courtesy of GENERAL MOTORS COMPANY
