Vehicle Dynamic Sensor Replacement (With DCK)

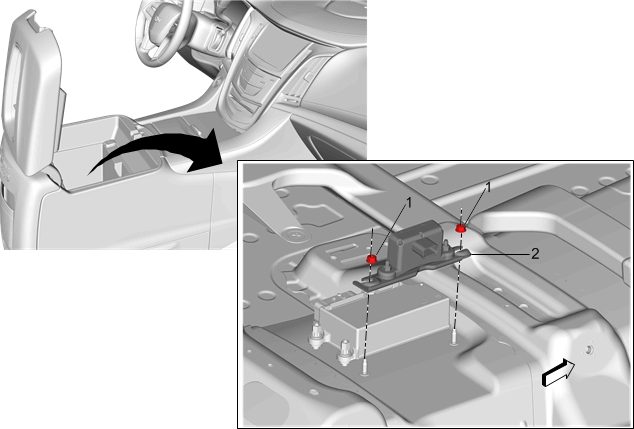

Fig 1: Vehicle Dynamic Sensor
GM3790178Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Turn the ignition OFF.
  2. Remove the front floor console center compartment. Refer to Front Floor Console Center Compartment Replacement (Insert)Front Floor Console Center Compartment Replacement (Chevrolet / GMC)Front Floor Console Center Compartment Replacement (Cadillac) .
1 Vehicle Dynamic Sensor Nut (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Vehicle Dynamic Sensor

Procedure

  1. Disconnect the electrical connector.
  2. Perform the Vehicle Yaw Sensor Learn .
