Vehicle Stability Control System Switch Replacement (Cadillac)

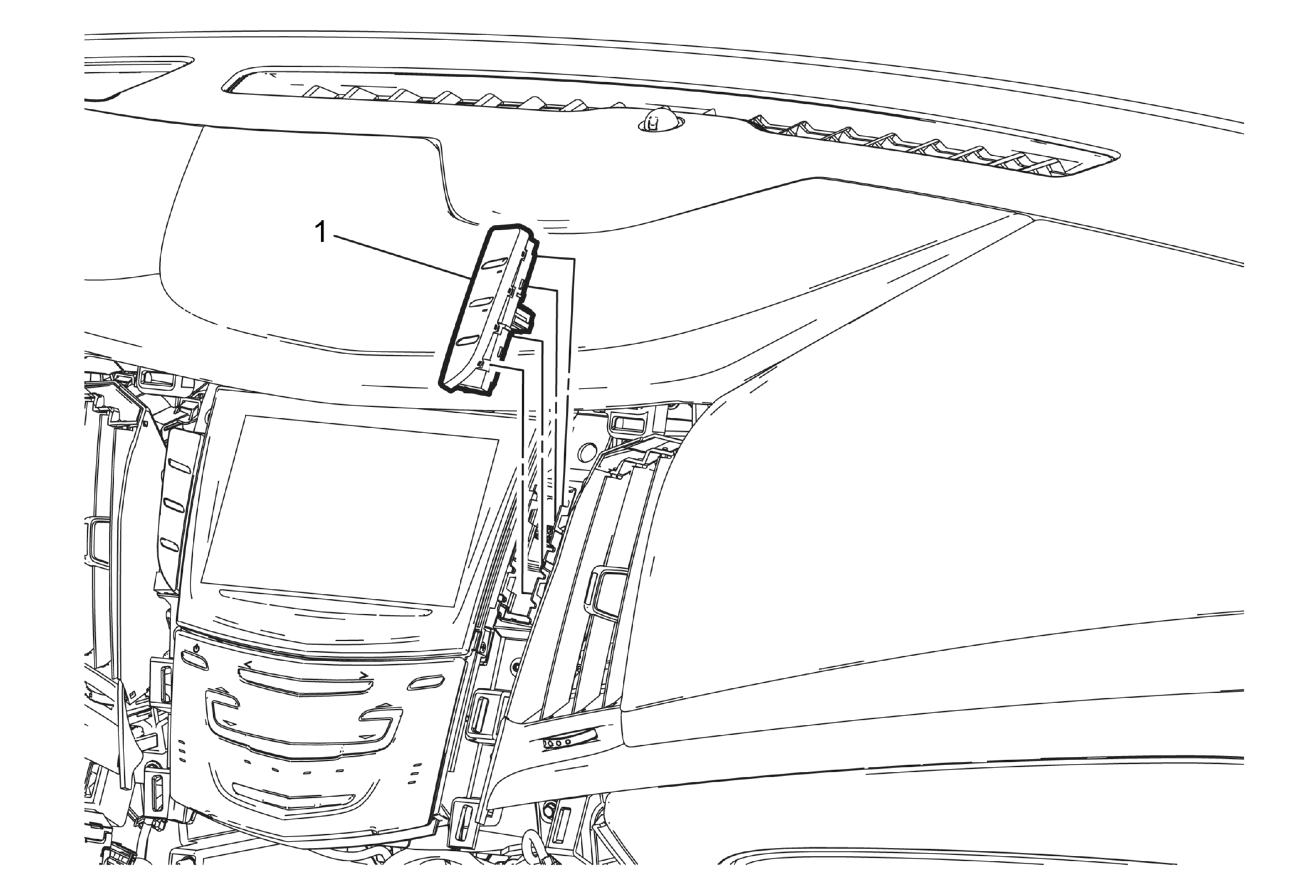

Fig 1: Vehicle Stability Control System Switch (Cadillac)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel lower trim plate applique. Refer to Instrument Panel Lower Trim Plate Applique Replacement (Cadillac) .
1	Vehicle Stability Control System Switch Procedure Using a flat bladed tool, release the two locking tabs on both sides of the switch. Lift the switch from the instrument panel. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel lower trim plate applique. Refer to Instrument Panel Lower Trim Plate Applique Replacement (Cadillac) .

Vehicle Stability Control System Switch

Procedure

Using a flat bladed tool, release the two locking tabs on both sides of the switch.
Lift the switch from the instrument panel.
Disconnect the electrical connector.
