Radio/Navigation System Wiring Schematics
›
Rear Audio Controls, Lighting, Data Communication, and Infrared Module
Rear Audio Controls, Lighting, Data Communication, and Infrared Module

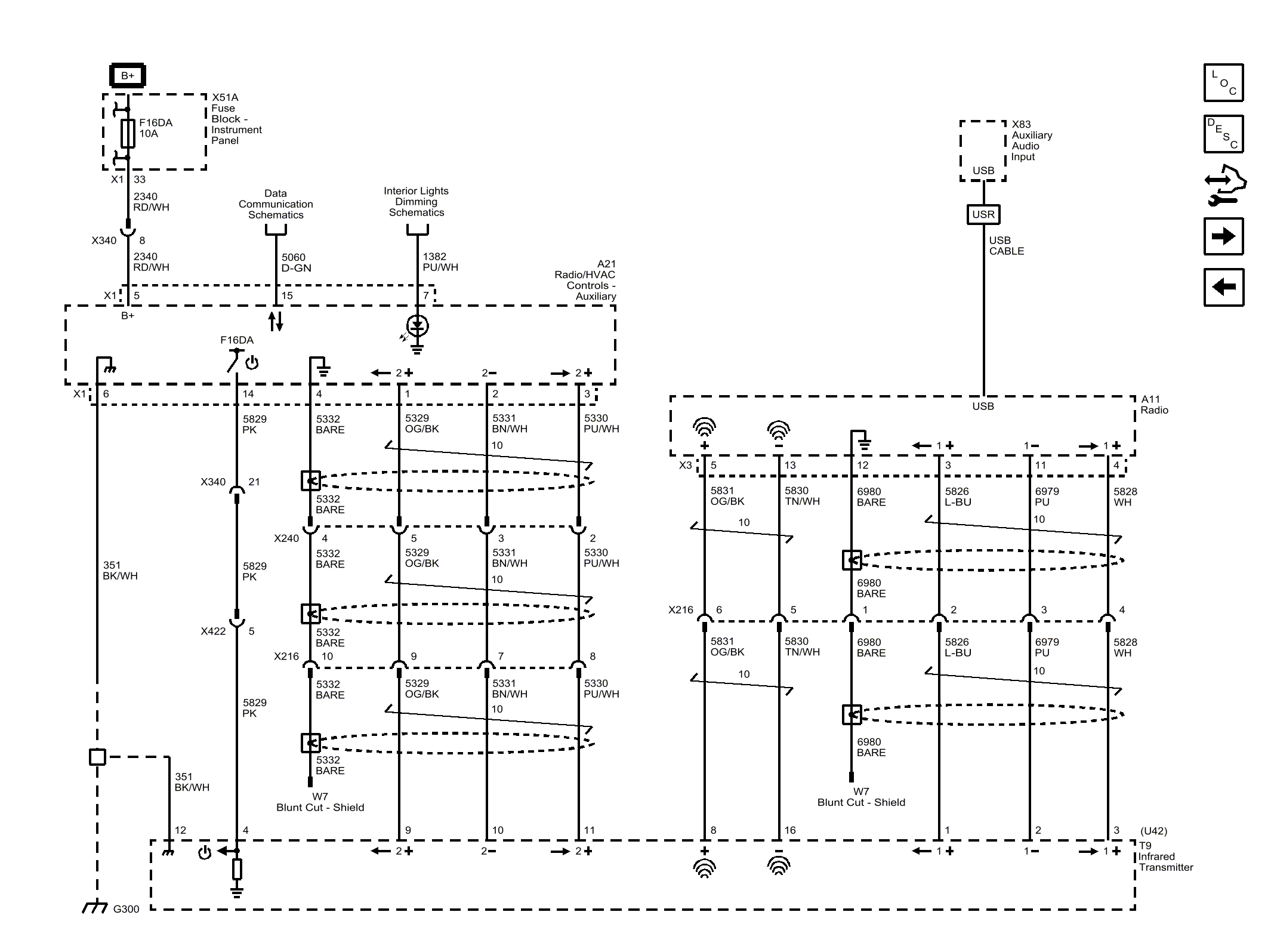

Fig 1: Rear Audio Controls, Lighting, Data Communication, and Infrared Module
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
