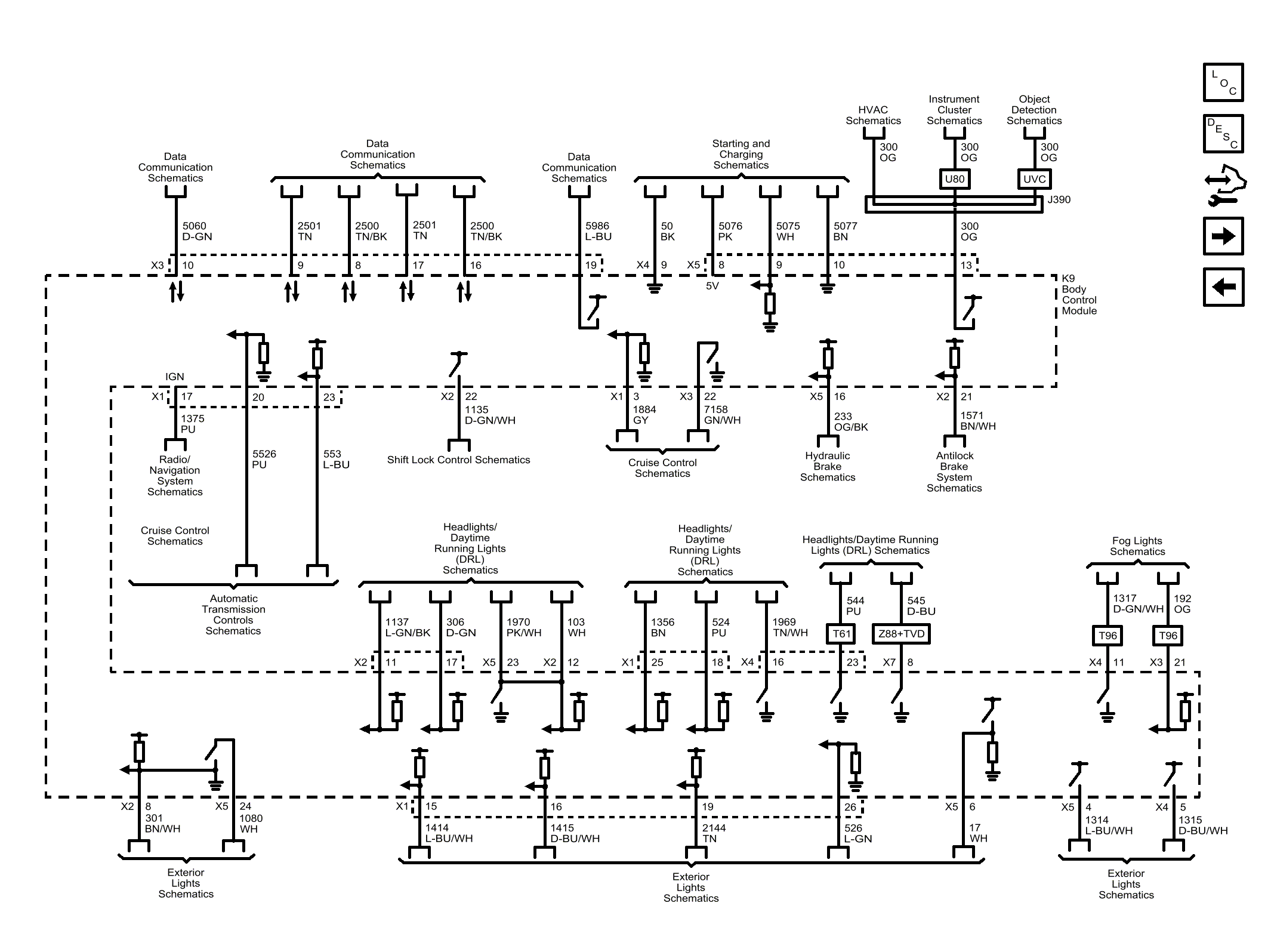

Home › Chevrolet › 2015 › Traverse LT, AWD › Repair and Diagnosis › Engine Performance › System › Data Communication System › Schematic Wiring Diagrams › Body Control System Wiring Schematics › Subsystem References (1 of 3)
