Communication Enable and Linear Interconnect Network (LIN)

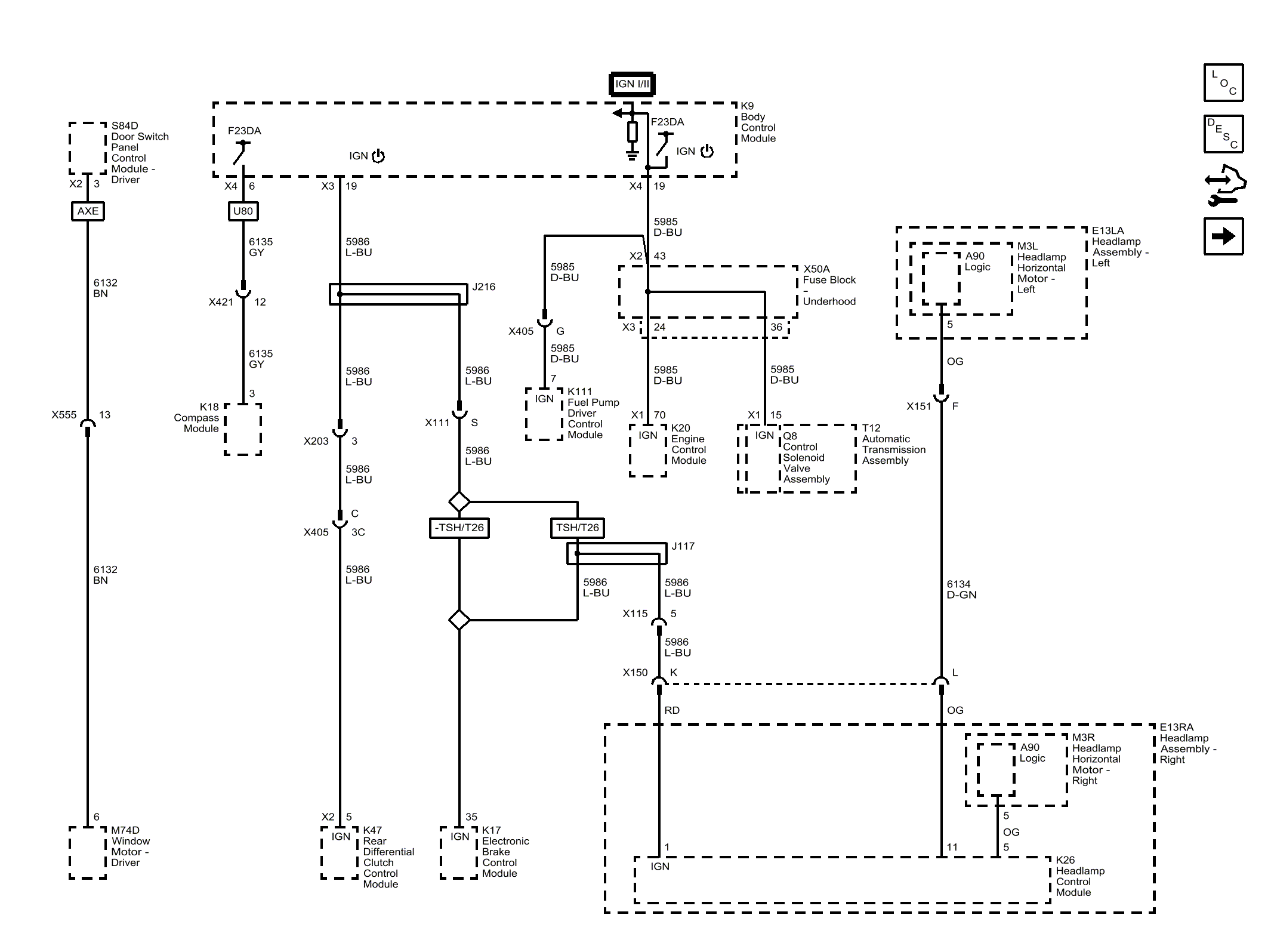

Fig 1: Communication Enable and Linear Interconnect Network (LIN)
GM3717793Courtesy of GENERAL MOTORS COMPANY
