Linear Interconnect Network (Trax)

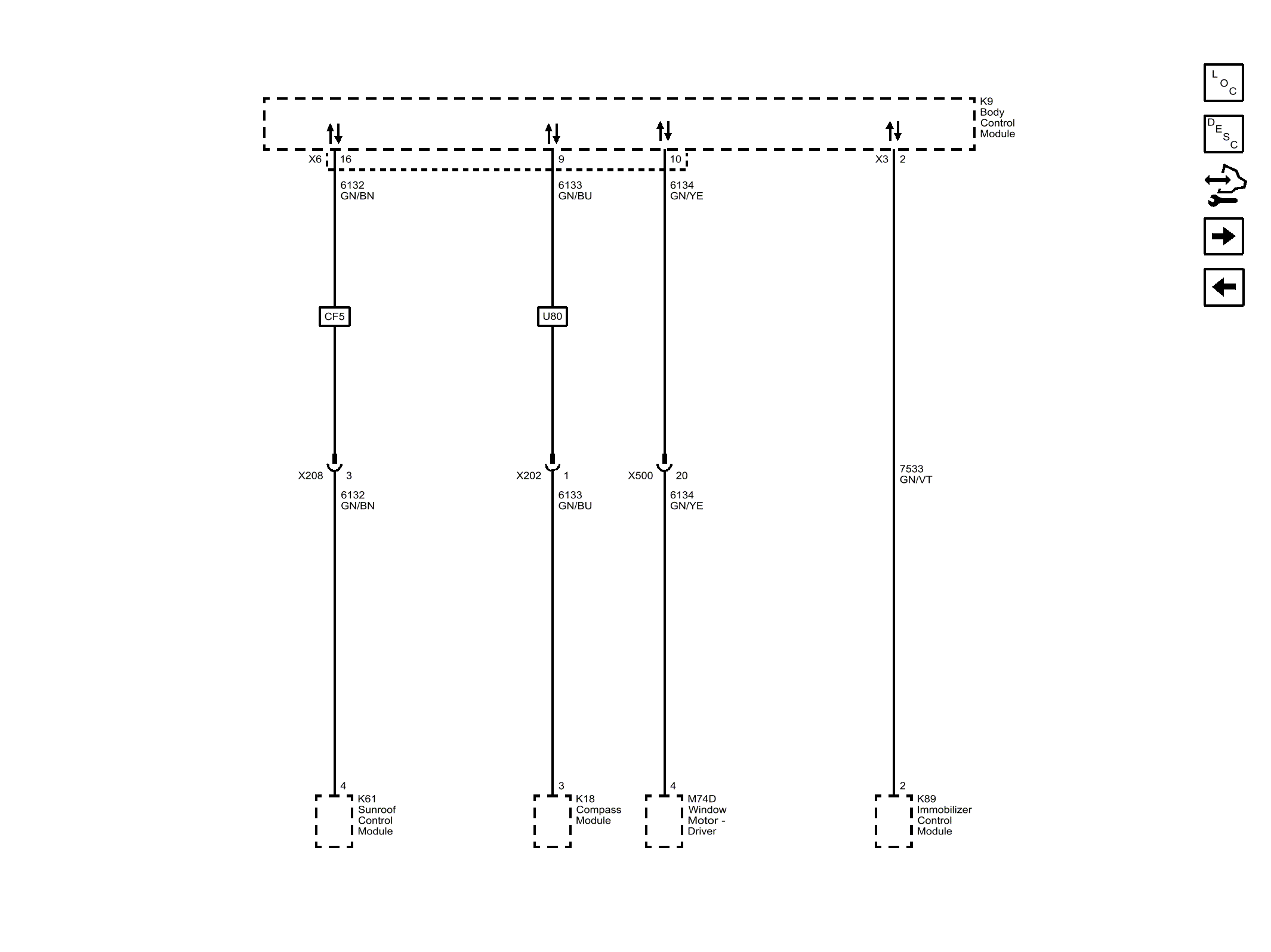

Fig 1: Linear Interconnect Network (Trax)
GM3689295Courtesy of GENERAL MOTORS COMPANY
