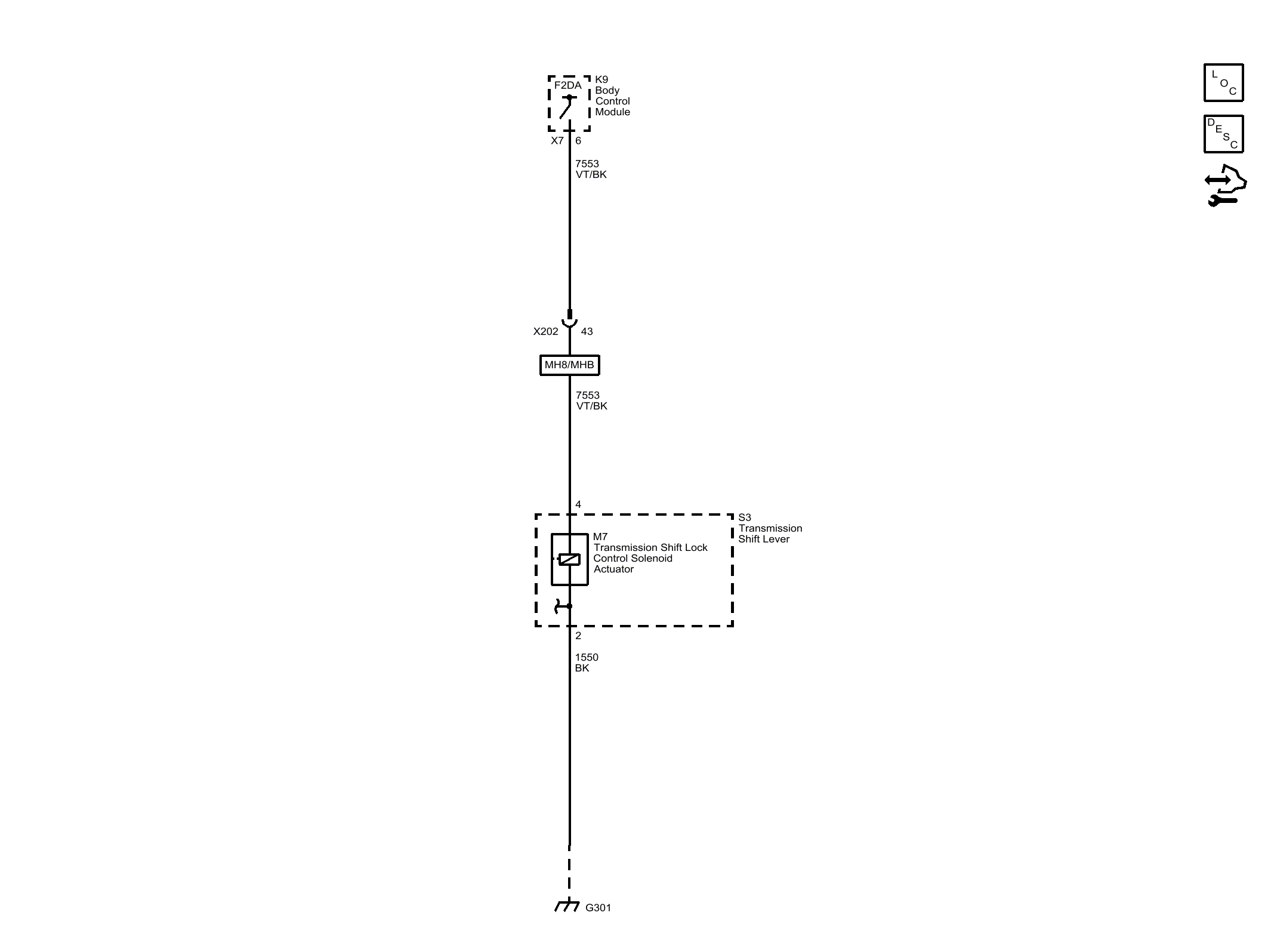

Home › Chevrolet › 2015 › Trax LS, AWD › Repair and Diagnosis › Transmission › Automatic Trans › Shift Lock Control System › Schematic Wiring Diagrams › Shift Lock Control Wiring Schematics Trax) › Shift Lock Control Trax)
