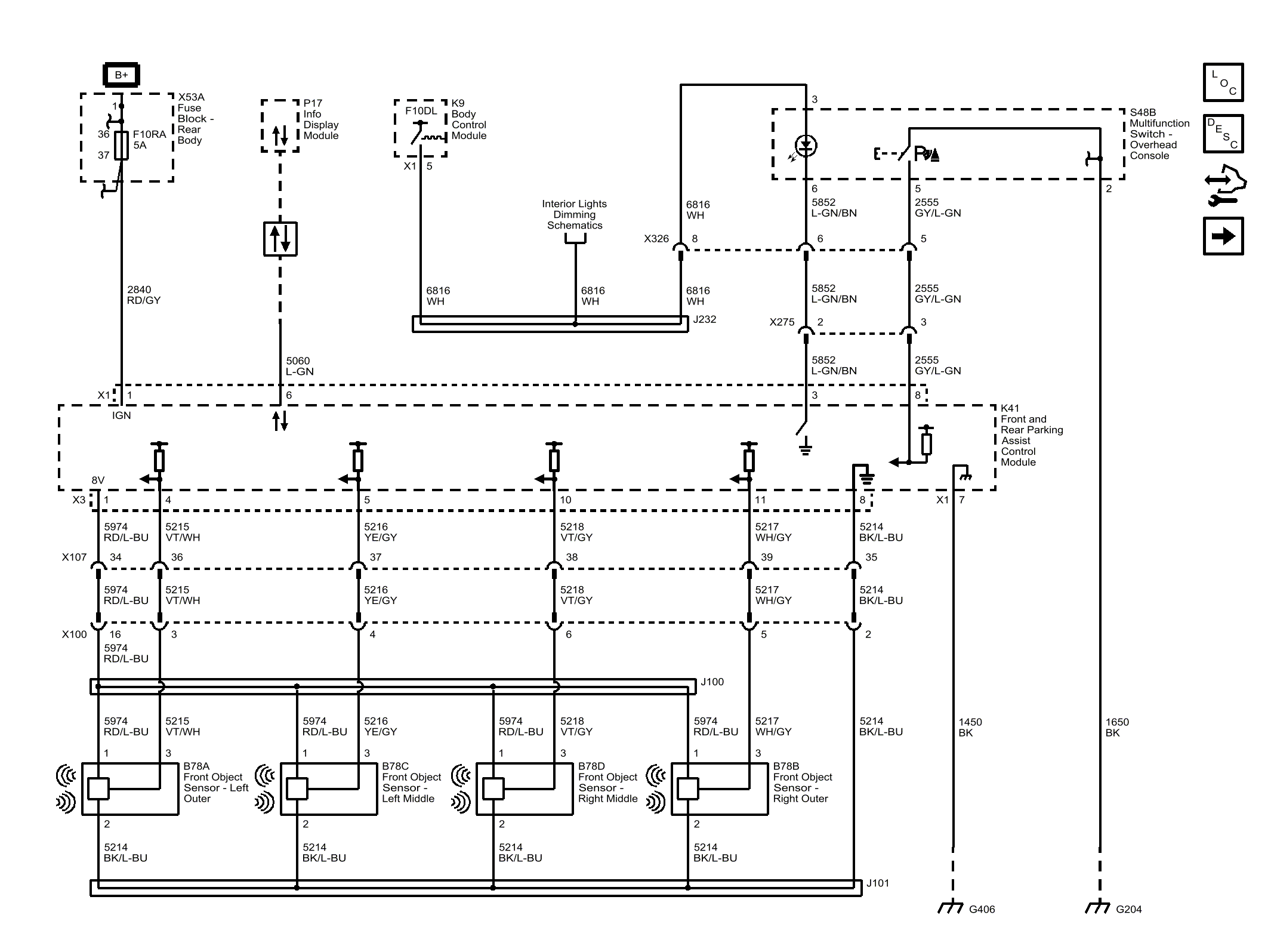

Home › Chevrolet › 2015 › Volt › Repair and Diagnosis › Accessories & Equipment › Drivers Assistance Systems - ADAS › Object Detection And Pedestrian Protection System › Schematic Wiring Diagrams › Object Detection Wiring Schematics › Front Park Assist (UDF)
