Camaro SS, 2D Convertible, Automatic Trans
›
Repair and Diagnosis
›
Accessories & Equipment
›
Drivers Assistance Systems - ADAS
›
Object Detection And Pedestrian Protection System
›
Schematic Wiring Diagrams
›
Object Detection Wiring Schematics
›
Pedestrian Impact Detection System (B3T)
Pedestrian Impact Detection System (B3T)

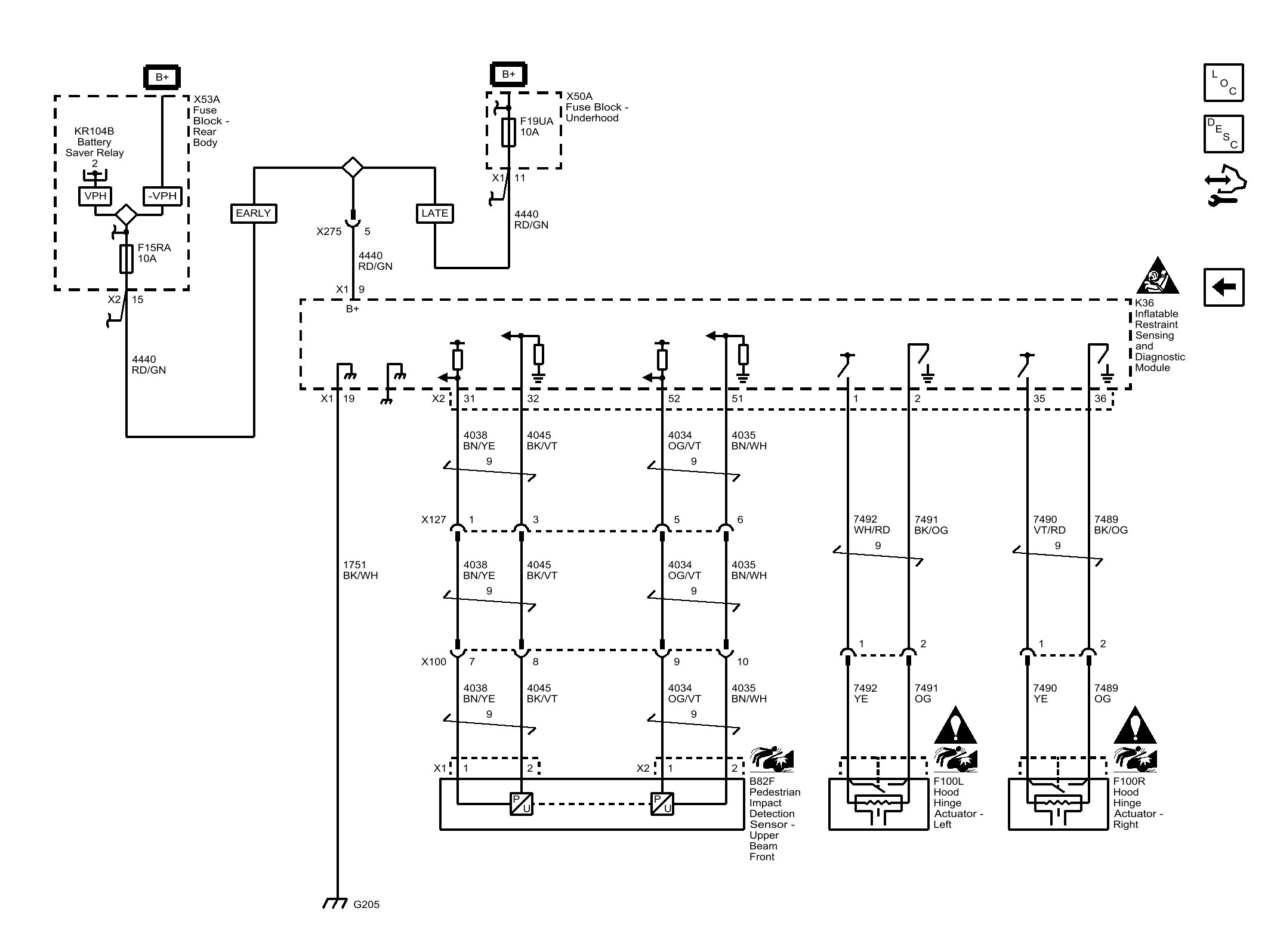

Fig 1: Pedestrian Impact Detection System (B3T)
