Folding Top Control Module Replacement

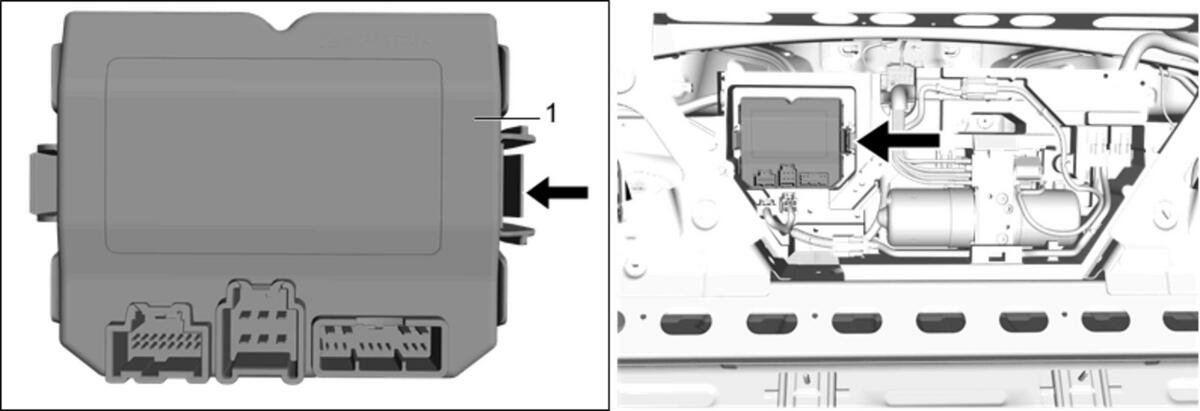

Fig 1: Folding Top Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Rear Seat Back Cushion Pad Replacement (Convertible)
1	Folding Top Control Module Procedure Disconnect the electrical connections. Remove tie strap. Release module and swing out of holder. Perform the necessary programming and setup procedure:Control Module References

Callout

Component Name

Folding Top Control Module

Procedure
