Air Cleaner Assembly Replacement

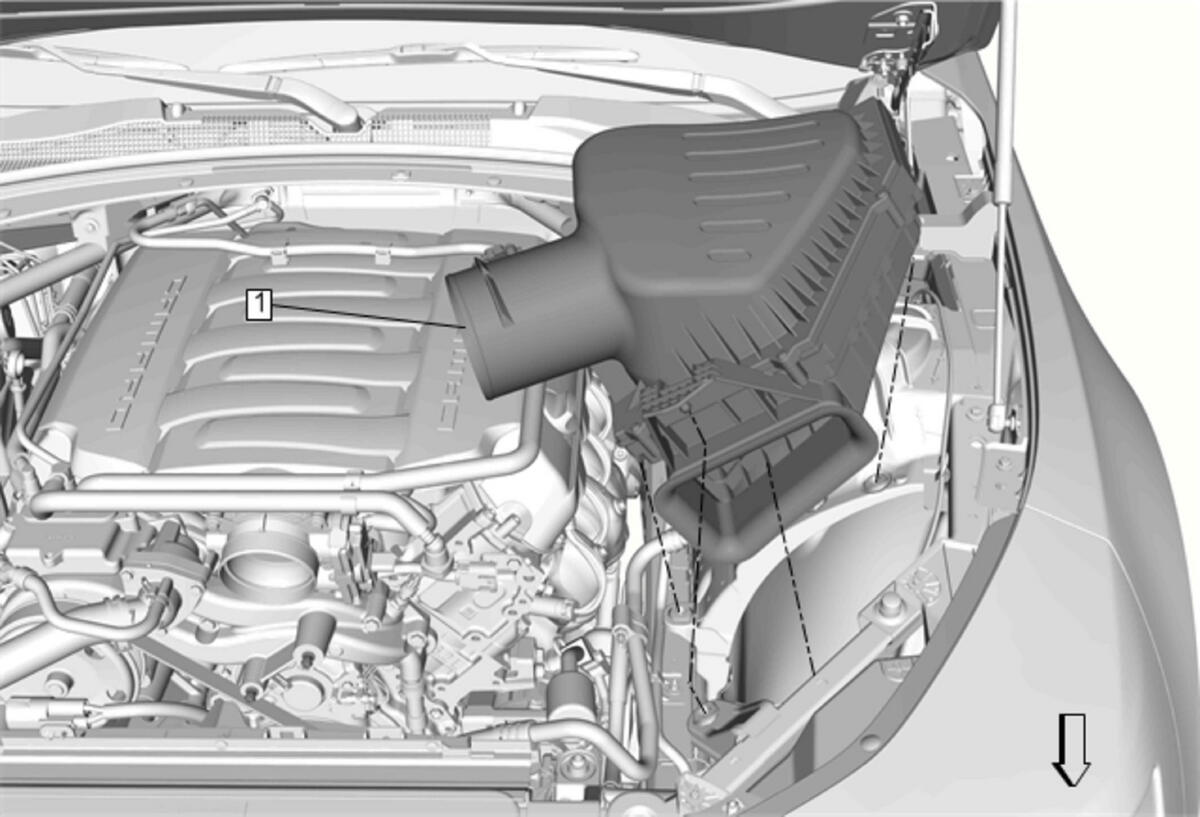

Fig 1: Air Cleaner Assembly
GM4194165Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Air Cleaner Outlet Duct Replacement
  2. Disconnect air cleaner resonator from air cleaner assembly - diagonal brace to air cleaner resonator. Air Cleaner Resonator Replacement (Diagonal Brace to Air Cleaner Resonator)
  3. Disconnect the electrical connector.
1 Air Cleaner Assembly

Procedure

  1. Remove the air cleaner housing from the retainers.
  2. Transfer parts as necessary.
