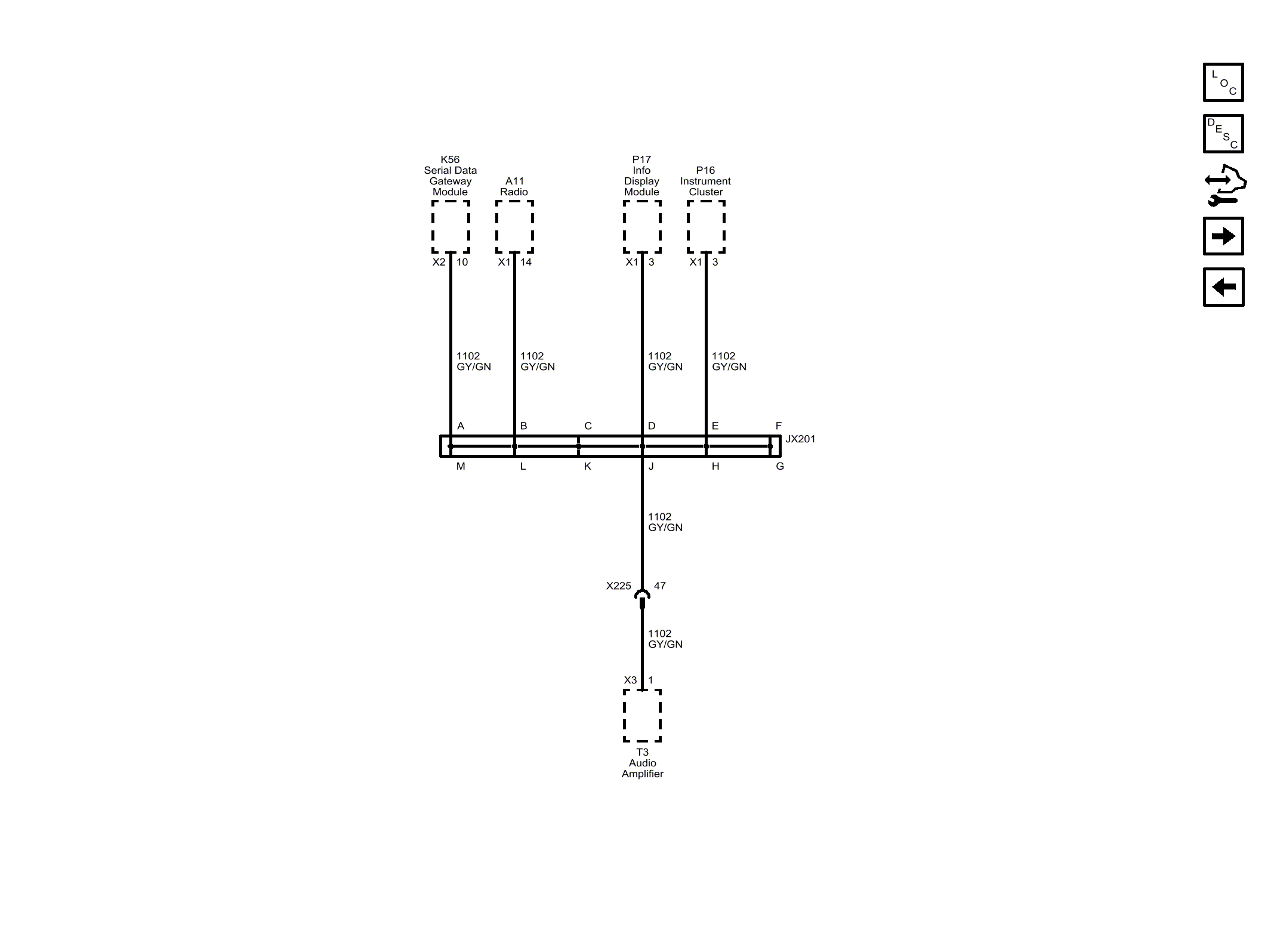

Home › Chevrolet › 2016 › Camaro SS, 2D Convertible, Automatic Trans › Repair and Diagnosis › Engine Performance › System › Data Communication System › Schematic Wiring Diagrams › Data Communication Wiring Schematics › Isolated Low Speed GMLAN
